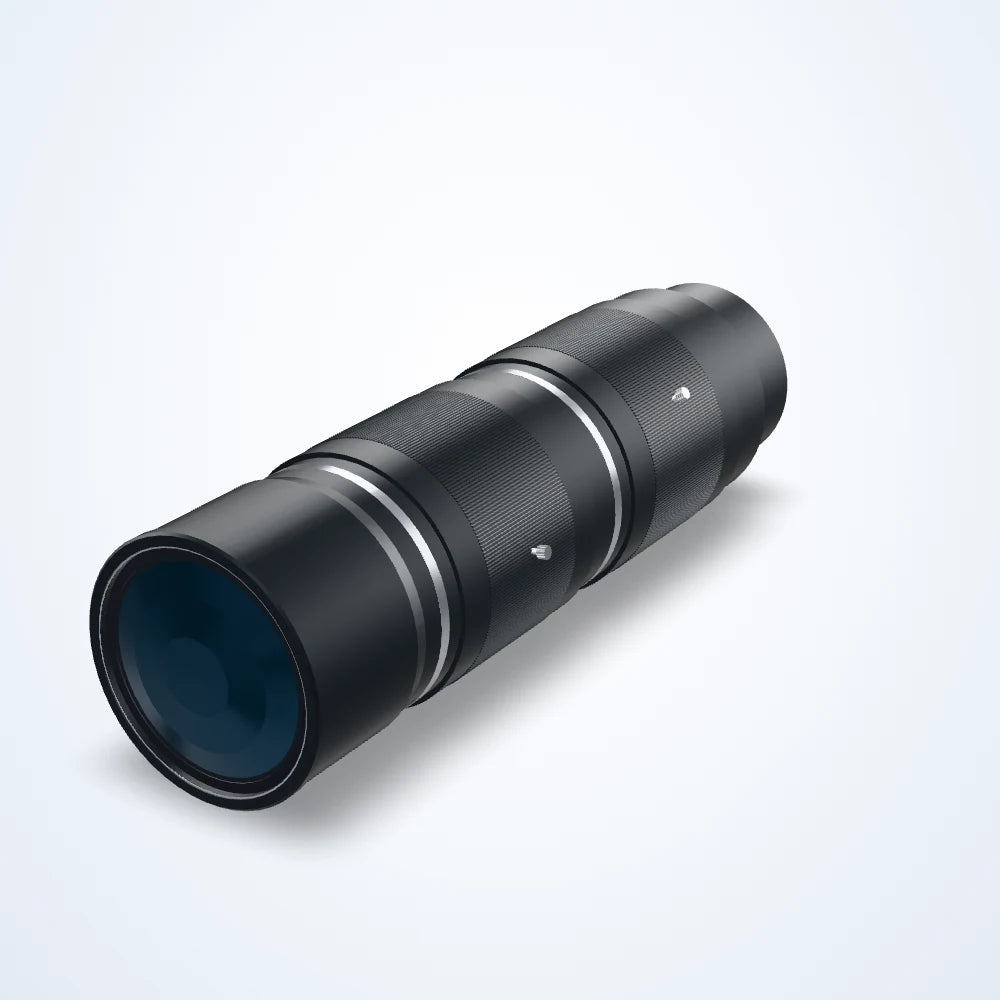

300 mm SWIR lens, 900-1700 nm, 1", F4, C-mount

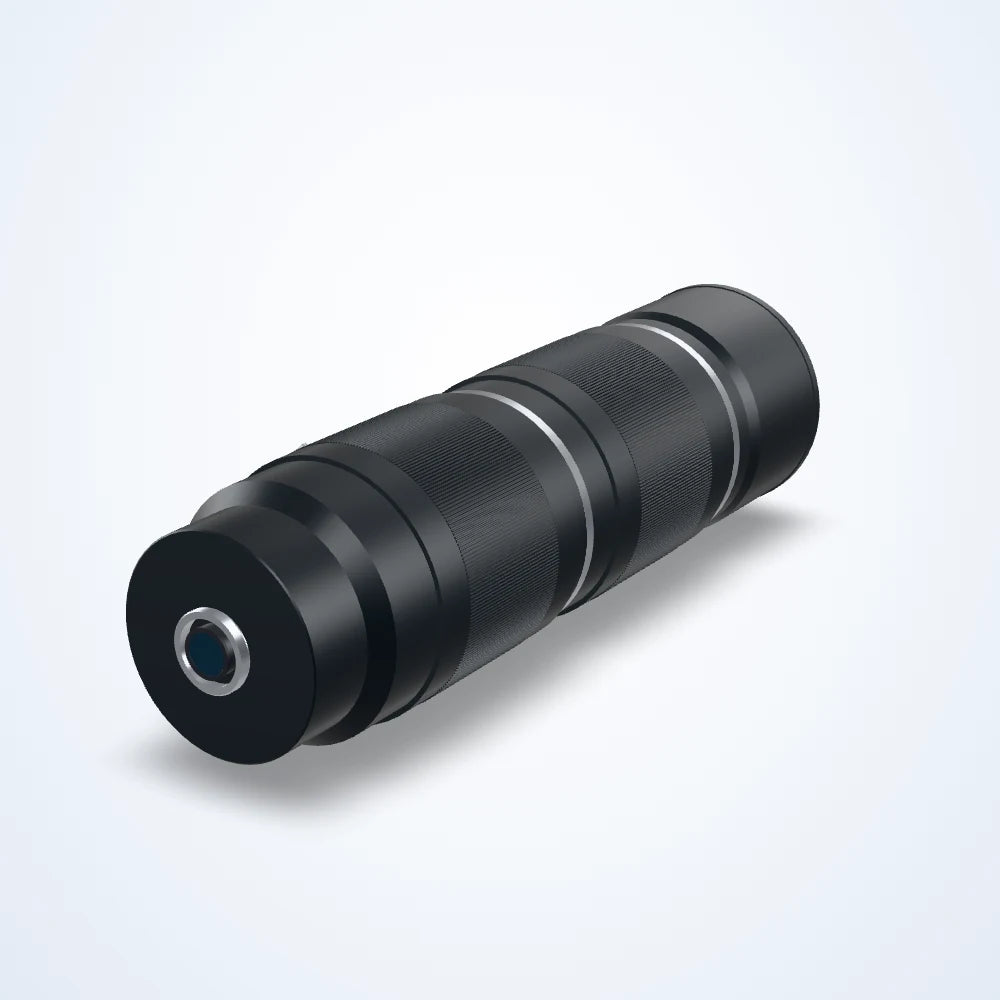

  • 300 mm SWIR lens, 900-1700 nm, 1", F4, C-mount
  • 300 mm SWIR lens, 900-1700 nm, 1", F4, C-mount

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

300 mm SWIR lens, 900-1700 nm, 1", F4, C-mount (LS-SWL-0238)

Model LS-SWL-0238

  • Focal length300 mm
  • MountC-mount
  • Sensor1"
  • Working distance10- ∞
  • ApertureF4-F22
$9,450.00

Ships in 3-4 weeks

4.5 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

300 mm SWIR lens, 900-1700 nm, 1", F4, C-mount (LS-SWL-0238)LS-SWL-0238

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

300 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 300 mm; covers sensors up to 1"; aperture F4; corrected for 900-1700 nm; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0238
Angle of view3.06°x2.44°x1.83°

Optics

Focal length300 mm
ApertureF4-F22
Distortion<0.06%
FocusManual
Filter threadM82x0.75 mm
Working distance10- ∞
Back focal length81.02 mm

Sensor and imaging

Sensor format1" CCD/CMOS

Light

Wavelength range900-1700 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

Flange back length81.02 mm
MountC-mount
Dimensions85.2x292
Shipping weight4.50 kg

LS-SWL-0238

See this component from every angle.

Illustration using the printed dimensions where available. Thickness, controls and smaller details are representative; verify the product drawing.

Explore the visual library
LS-SWL-0238 — Thermal, SWIR & UV lenses, View 1 Dimension-based 3D

FROM THE PRINTED SPECIFICATIONS

Focal length
300 mm
Sensor format
1" CCD/CMOS
Mount
C-mount
Working distance
10- ∞

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
