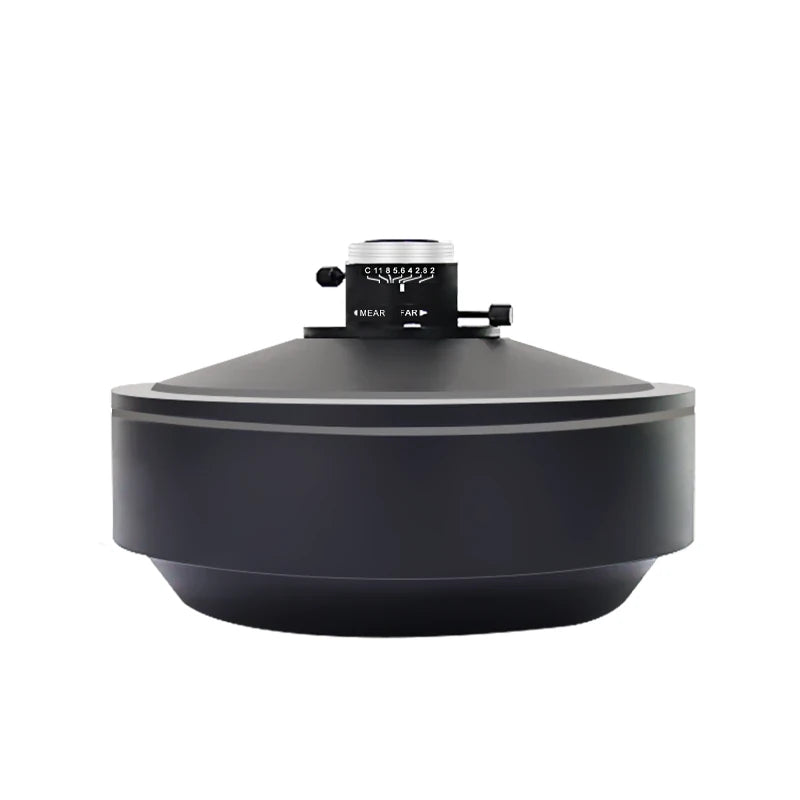

360 degree industrial lens (LS-PCL-S02)

360° inspection lenses

360 degree industrial lens (LS-PCL-S02)

  • 10 models
  • from $909.00
  • Series LS-PCL-S02

The 360 degree industrial lens (LS-PCL-S02) is a range of 10 360° inspection lenses from LumaSpec Vision, from $909.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 10 models Series datasheet (PDF)

The series at a glance

Sizes / versions
1/1.8", C-mount, 1/2", C-mount, 1/3", C-mount, 2/3", C-mount
Mount
C-mount
Image circle
Up to 8 mm, 22-30 mm
Working distance
Under 65 mm
Sensor format
1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3"

Features

  • Sensor Size: 1/1.8".
  • Working Distance: 9-45.4mm.
  • F/NO: F8-16, C-Mount.
  • High contrast and excellent imaging effects.
  • Suitable suitable for appearance detection, inner wall detection, cylinder and complex structure detection, etc.

All 10 models in the 360 degree industrial lens (LS-PCL-S02)

Link
LS-PCL-00481/1.8", C-mount1/1.8"9-45.4F8.0-16$909.00View
LS-PCL-00502/3", C-mount2/3"15-49F8.0-16$909.00View
LS-PCL-00451/2", C-mount1/2"8-44F7.0-16$909.00View
LS-PCL-00471/3", C-mount1/3"9.7-46.5F6.0-16$909.00View
LS-PCL-00432/3", C-mount2/3"2.7-70$909.00View
LS-PCL-00421/3", C-mount1/3"12.5-50F14$909.00View
LS-PCL-00461/2", C-mount1/2"10-43F6.0-12$909.00View
LS-PCL-00512/3", C-mount2/3"2-5F1.6-16$909.00View
LS-PCL-00442/3", C-mount2/3"12.6F1.6-16$909.00View
LS-PCL-00491/2", C-mount1/2"15-66F8.0-22$909.00View
