360° inspection lenses

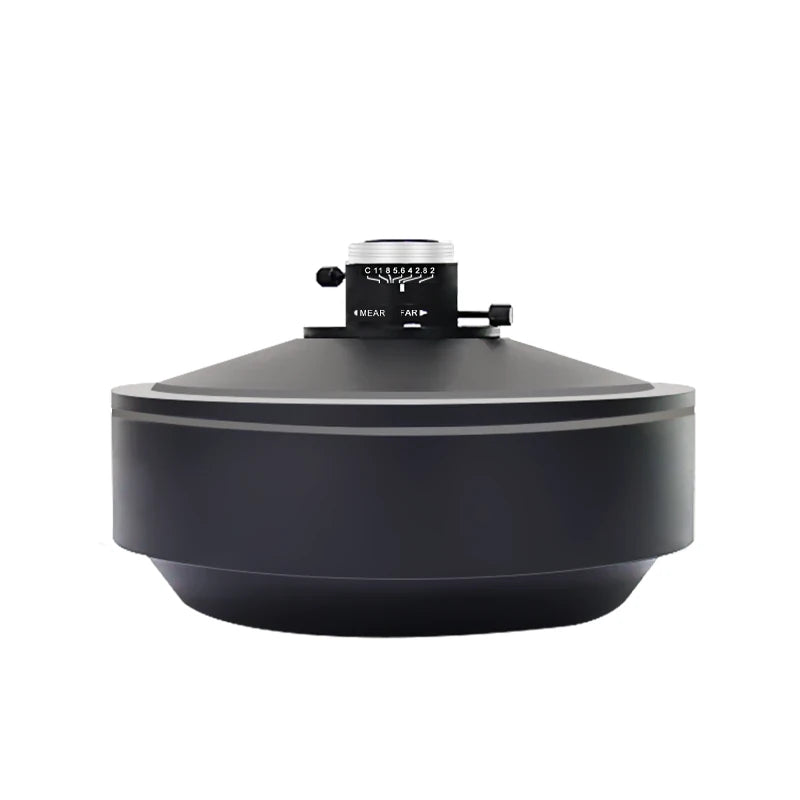

360 degree industrial lens, 1/1.8", C-mount (LS-PCL-0048)
Model LS-PCL-0048
- MountC-mount
- Sensor1/1.8"
- Working distance9-45.4 mm
- ApertureF8.0-16
- Field of view7.5x5.3
$909.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

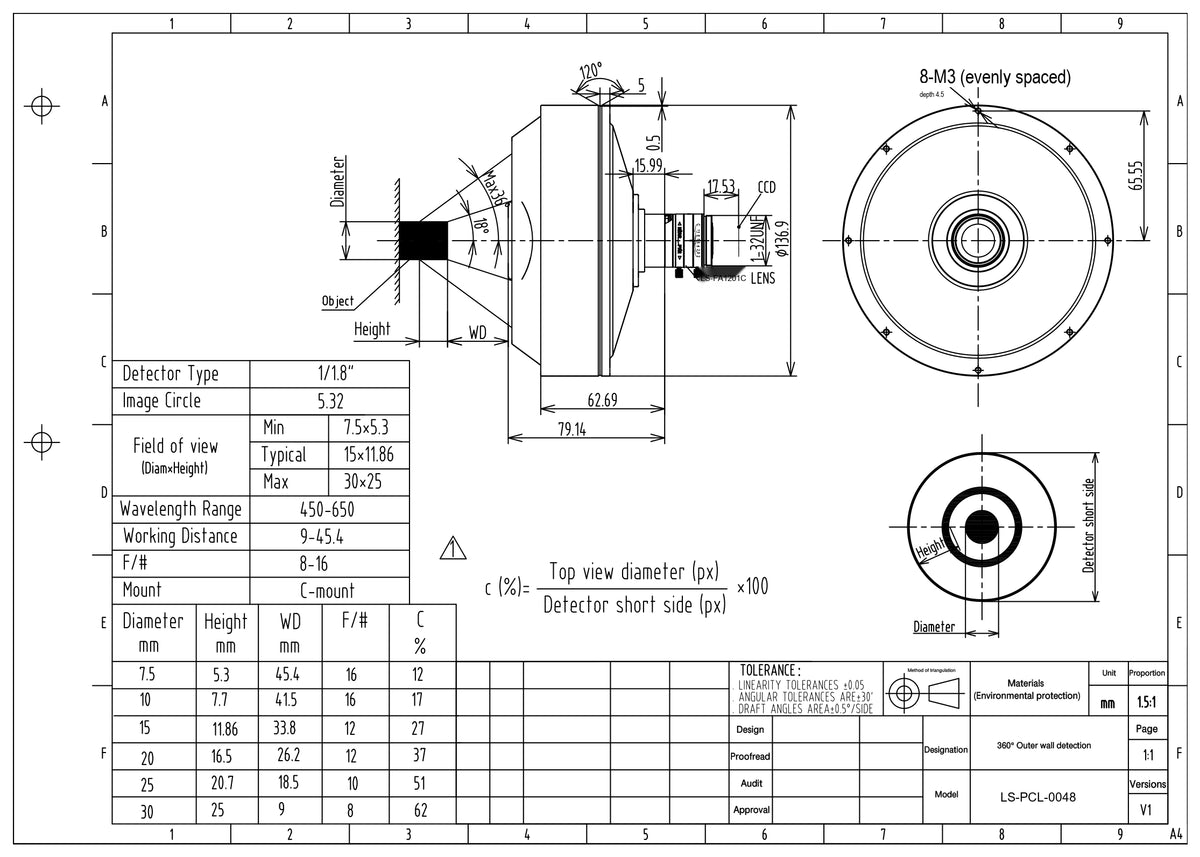

Specifications
General
| Model | LS-PCL-0048 |
|---|---|
| Target Dia(mm) | 7.5-30 |
| Type | 360 Degree Industrial Lens-Outer Wall Detection |
| Custom Design | Supported |
Optics
| Image Size(mm) | dia. 5.32 |
|---|---|
| Working distance (mm) | 9-45.4 |
| Aperture | F8.0-16 |
| Field of view min (diameter x height, mm) | 7.5x5.3 |
| Field of view typical (diameter x height, mm) | 15x11.86 |
| Field of view max (diameter x height, mm) | 30x25 |
Sensor and imaging
| Sensor format | 1/1.8" |
|---|
Light
| Color | Black |
|---|---|
| Wavelength range (nm) | 450-650 |
Mechanical
| Inspection Height(mm) | 5.3-25 |
|---|---|
| Mount | C |
| Main Material | Aluminum Alloy + optical Glass |
| Shipping weight | 0.94 kg |
