360° inspection lenses

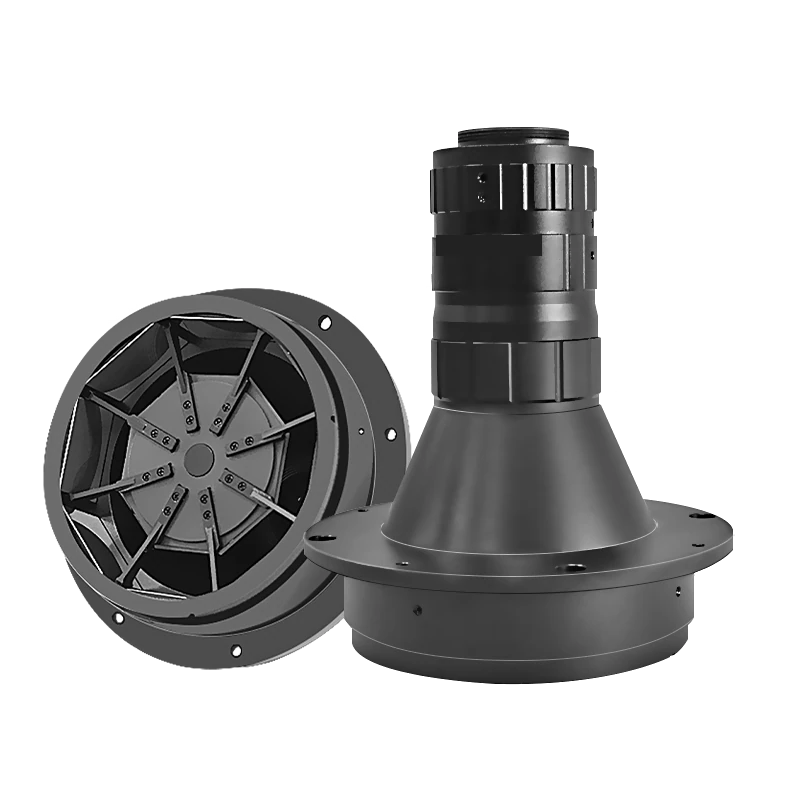

360 degree industrial lens, 2/3", C-mount, working distance 2-5 mm (LS-PCL-0051)
Model LS-PCL-0051
- MountC-mount
- Sensor2/3"
- Working distance2-5 mm
- ApertureF1.6-16
- Field of view0.8x17
$909.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

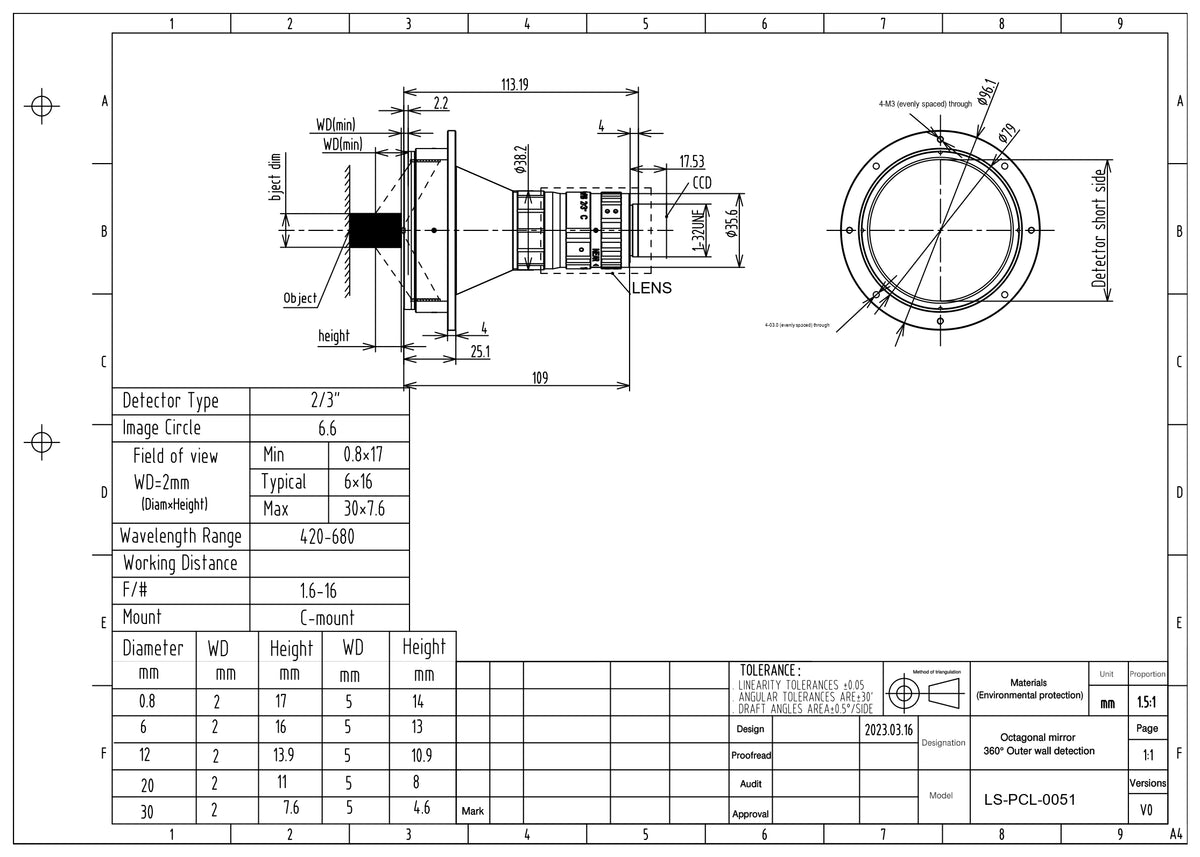

Specifications
General
| Model | LS-PCL-0051 |
|---|---|
| Target Dia(mm) | 0.8-30 |
| Type | 360 Degree Industrial Lens-Octagonal mirror |
| Custom Design | Supported |
Optics
| Image Size(mm) | dia. 6.6 |
|---|---|
| Working distance (mm) | 2-5 |
| Aperture | F1.6-16 |
| Field of view min at WD 2 mm (diameter x height, mm) | 0.8x17 |
| Field of view typical at WD 2 mm (diameter x height, mm) | 6x16 |
| Field of view max at WD 2 mm (diameter x height, mm) | 30x7.6 |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Light
| Color | Black |
|---|---|
| Wavelength range (nm) | 420-680 |
Mechanical
| Inspection Height(mm) | 7.6-17 |
|---|---|
| Mount | C |
| Main Material | Aluminum Alloy + optical Glass |
| Shipping weight | 0.94 kg |
Other models in the 360 degree industrial lens (LS-PCL-S02) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-PCL-0048 | 1/1.8", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0050 | 2/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0045 | 1/2", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0047 | 1/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0043 | 2/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0042 | 1/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0046 | 1/2", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0044 | 2/3", C-mount | $909.00 | Ships in 2-3 weeks | View |
| LS-PCL-0049 | 1/2", C-mount | $909.00 | Ships in 2-3 weeks | View |
