360 degree industrial lens, 1/3", C-mount, working distance 12.5-50 mm (LS-PCL-0042)
  • 360 degree industrial lens, 1/3", C-mount, working distance 12.5-50 mm (LS-PCL-0042)

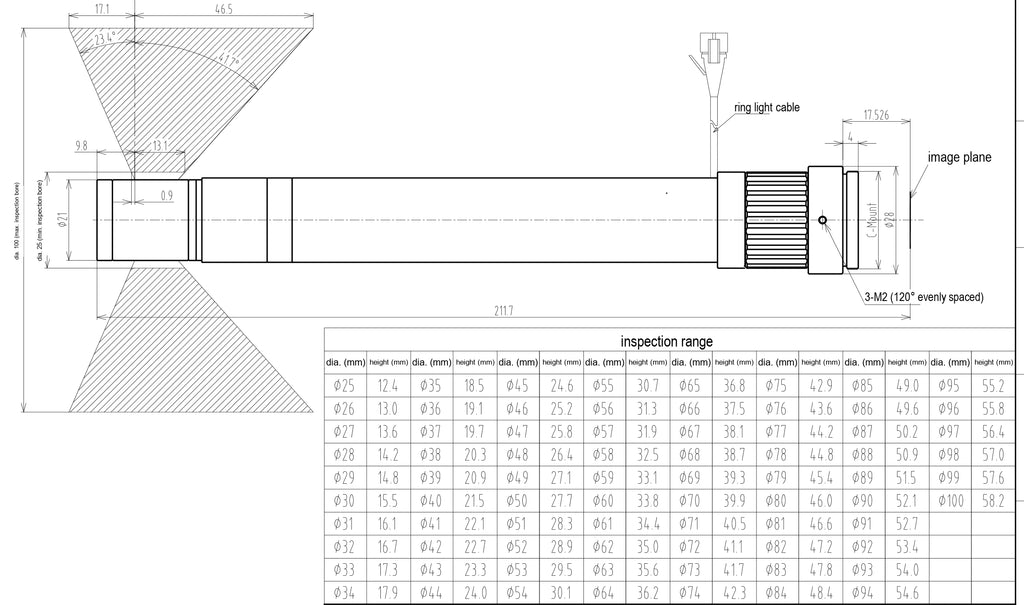

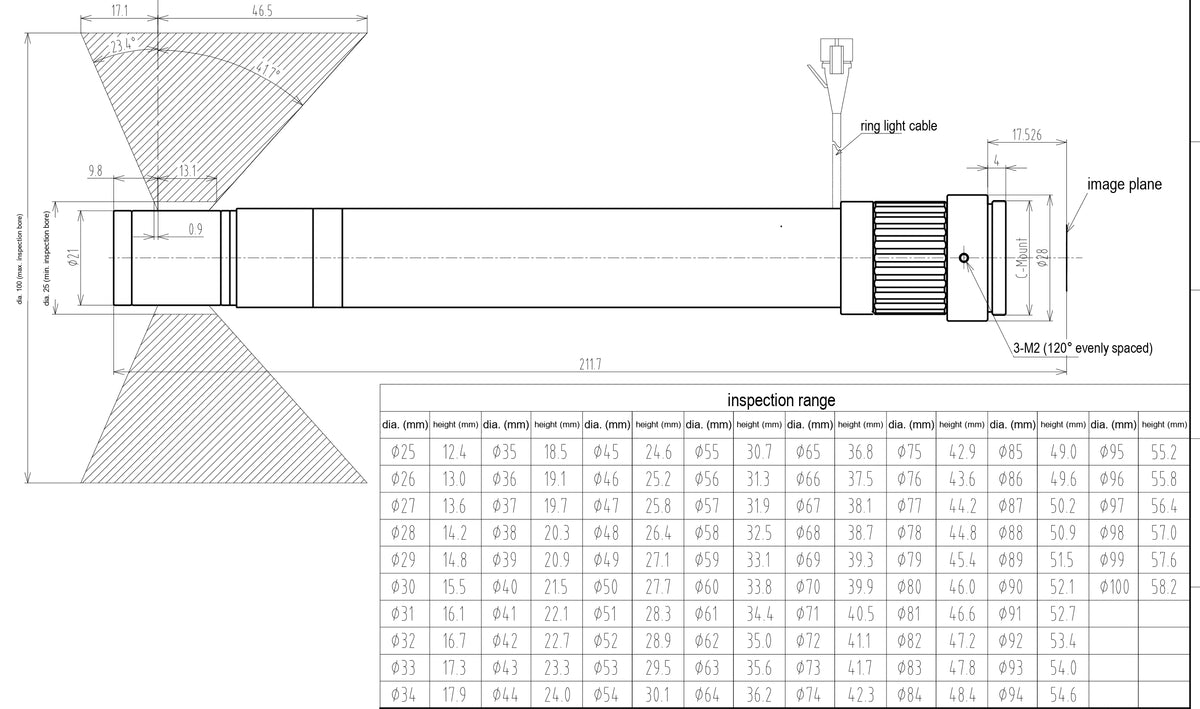

  • LS-PCL-0042 dimensions (mm)

360° inspection lenses

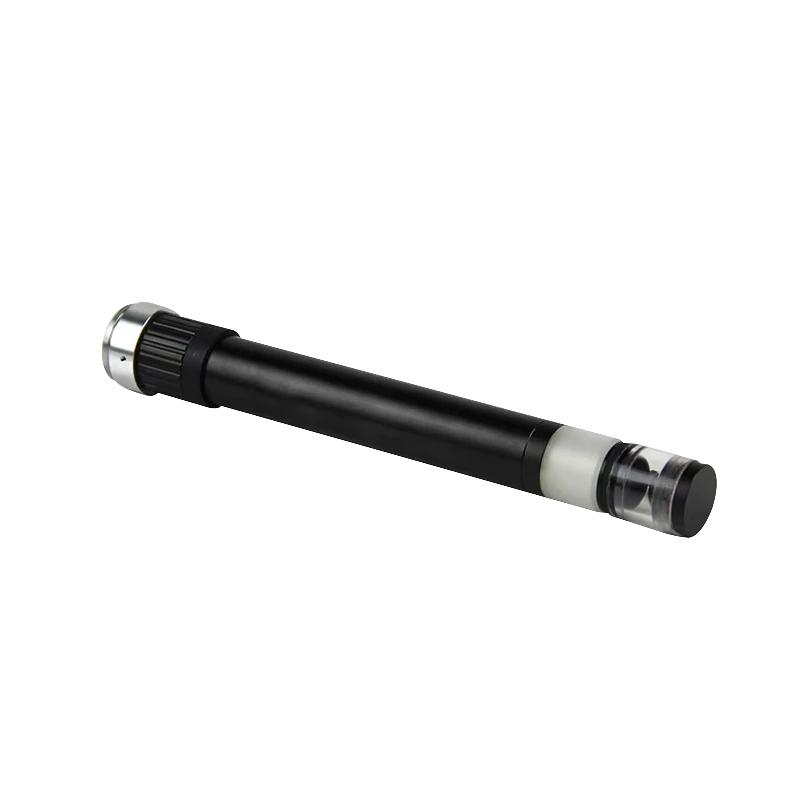

360 degree industrial lens, 1/3", C-mount, working distance 12.5-50 mm (LS-PCL-0042)

Model LS-PCL-0042

  • MountC-mount
  • Sensor1/3"
  • Working distance12.5-50 mm
  • ApertureF14
$909.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

360 degree industrial lens, 1/3", C-mount, working distance 12.5-50 mm (LS-PCL-0042)LS-PCL-0042

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

360 degree Industrial lens is divided into internal and external observations. It detects the internal view or appearance of the measured object in 360 degrees, and transmits HD images in real time.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-PCL-0042
Target Dia(mm)25-100
Type360 degree Viewing lens
Custom DesignSupported

Optics

Image Size(mm)dia. 3.6
Working distance (mm)12.5-50
ApertureF14

Sensor and imaging

Sensor format1/3"

Light

ColorBlack

Mechanical

Inspection Height(mm)12.4-58.2
MountC
Main MaterialAluminum Alloy + optical Glass
Shipping weight0.94 kg
