Board-level cameras
GigE board camera / module (LS-BCM-S06)
- 9 models
- from $209.00
- Series LS-BCM-S06

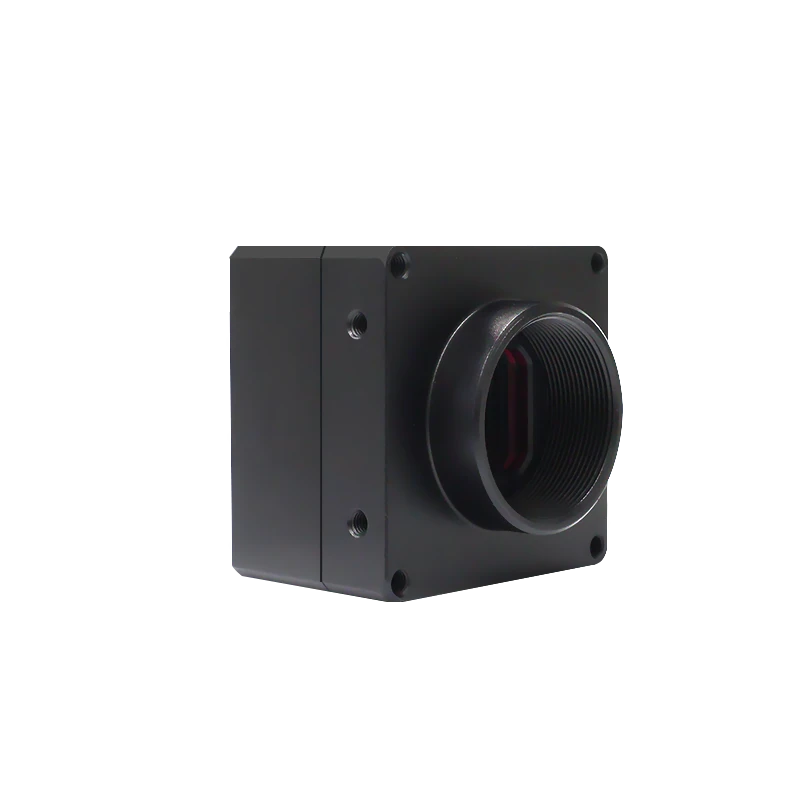

The GigE board camera / module (LS-BCM-S06) is a range of 9 board-level cameras from LumaSpec Vision, from $209.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1.3 MP, GigE, Color, 1.3 MP, GigE, Color/Mono, 5.1 MP, GigE, Color/Mono, 12 MP, GigE, Color/Mono, 20 MP, GigE, Color, 20 MP, GigE, Color/Mono
- Interface
- GigE
- Resolution
- Up to 3 MP, 5 MP, 12 MP, 16-25 MP
- Shutter
- Global, Rolling
- Lens mount
- C-mount, CS-mount
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 1"
- Colour
- Color
Features
- Single board design, small size, ultra-thin
- Embedded system integration is more convenient and integrated
- Supports 16bit gray and 48bit color lossless format output
- Multiple options available: single board / C interface / M12 interface
- Programmable IO, supports external trigger and flash synchronous photography
- Supports PC Linux and ARM Linux, can be integrated into embedded devices
- Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
- Comes with programmable IO.
Typical uses
- Electronics / semiconductor
- Factory automation
- Food and beverage
- Pharmaceutical packaging
- Image measurement
All 9 models in the GigE board camera / module (LS-BCM-S06)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-BCM-0050 | 1.3 MP, GigE, Color/Mono | 4.8umx4.8 μm | Global | C / M12 | $209.00 | View |
| LS-BCM-0057 | 20 MP, GigE, Color/Mono | 2.4umx2.4 μm | Rolling,Global start | C | $209.00 | View |
| LS-BCM-0054 | 5.1 MP, GigE, Color/Mono | 2μm×2μm | $209.00 | View | ||
| LS-BCM-0055 | 12 MP, GigE, Color/Mono | 1.85 μm | Rolling | C | $209.00 | View |
| LS-BCM-0056 | 12 MP, GigE, Color/Mono | 1.6μm×1.6μm | $209.00 | View | ||
| LS-BCM-0058 | 20 MP, GigE, Color | 2.4 μm | Rolling, Global start | CS | $209.00 | View |
| LS-BCM-0053 | 5.1 MP, GigE, Color/Mono | 2.0 μm | Rolling | CS | $209.00 | View |
| LS-BCM-0051 | 1.3 MP, GigE, Color | 4.8 μm | Global | CS | $209.00 | View |
| LS-BCM-0052 | 5.1 MP, GigE, Color/Mono | 2.0umx2.0 μm | Rolling | C | $209.00 | View |
