Board-level cameras

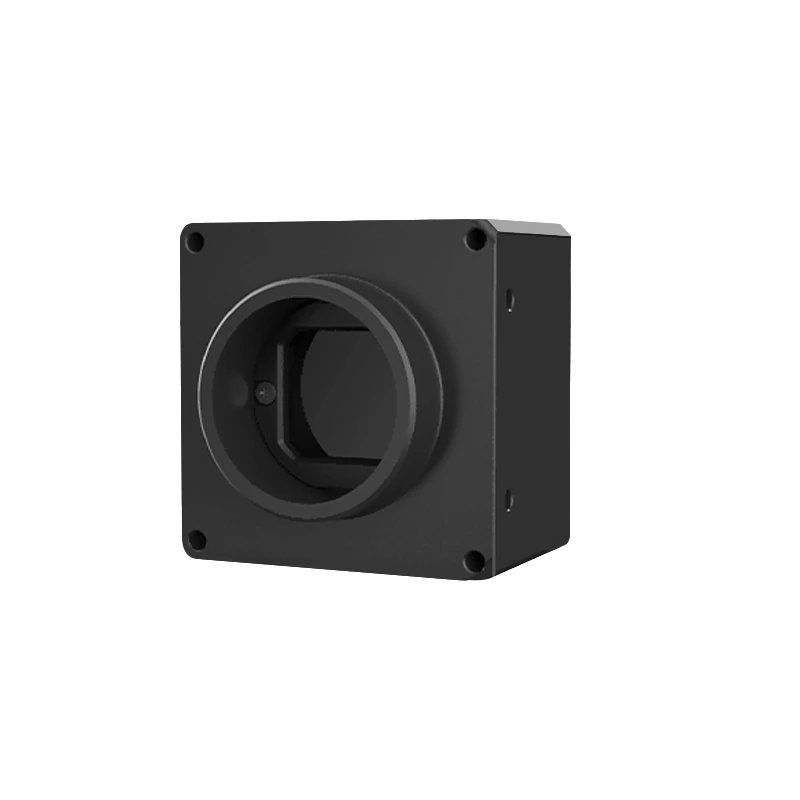

GigE board camera / module, 12 MP, GigE, Color/Mono, 1.85 μm pixels (LS-BCM-0055)

Model LS-BCM-0055

InterfaceGigE (GigE Vision, GenICam)
Speed4000× [email protected]
Lens mountC-mount
Pixel size1.85 μm

$209.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Single-board Gigabit Ethernet camera modules designed to be compatible with GigE Vision and GenICam standards, fully compatible with mainstream vision software such as LabVIEW, Halcon and VisionPro. Suitable for electronics/semiconductor, factory automation, food and beverage, pharmaceutical packaging and image measurement.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BCM-0055
Sensitivity	250mV 1/30s
Frame buffer	128MB
User-defined data area	2KB
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other Features	Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more

Sensor and imaging

Sensor	1/1.7" CMOS
Effective pixels	12MP
Pixel size	1.85 μm
Shutter	Rolling
Resolution @ frame rate	4000× [email protected]
Dynamic range	66dB
Output pixel width	10bits
Maximum gain (multiple)	22
Exposure time range (ms)	Color: 0.031~4063.2 Mono: 0.001~1310.7
SNR	38dB
Resolution@frame rate	4000×3000@9.75FPS
Shutter mode	Rolling Shutter
Effective pixel	12MP
Pixel bit depth	10bit

Interfaces and I/O

Interface	GigE (GigE Vision, GenICam)
GPIO	1 optical coupling isolated input, 2 optical coupling isolated output
Video output format	Color: Bayer8bit Mono: Mono8bit
Vision standard protocol	GigE Vision V1.2, GenICam
Data interface	GigE

Light

Color	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Operating temperature	0~50°
Operating humidity	20~80% (no condensation)
Storage temperature	-30~60°
Storage humidity	20~95%(no condensation)

Computing

Operating system	WINXP, WIN7/8/10 32&64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Drive program	Directshow component Halcon special component Labview special drive OCX component TWAIN component

Electrical

Power supply	12~24V
Power	2.66W
Voltage	12~24V

Mechanical

Single board module size	40 x 40 mm board (drawing)
Housed camera size	43 x 43 mm front, C-mount (C Mouth 1-32UN, depth 8) (drawing)
Lens mount	C
Dimension	43x43x28.7mm (excluding lens base and rear shell interface)
AD width	12bit
Shipping weight	0.31 kg

Downloads

Datasheet (PDF)LS-BCM-0055 · 2.7 MB

Features

Single board design, small size, ultra-thin
Embedded system integration is more convenient and integrated
Supports 16bit gray and 48bit color lossless format output
Multiple options available: single board / C interface / M12 interface
Programmable IO, supports external trigger and flash synchronous photography
Supports PC Linux and ARM Linux, can be integrated into embedded devices
Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Comes with programmable IO.
Supports 16bit mono and 48bit color lossless format output.
Multiple options are available:single board,C interface,M12 interface.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronics / semiconductor
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement
