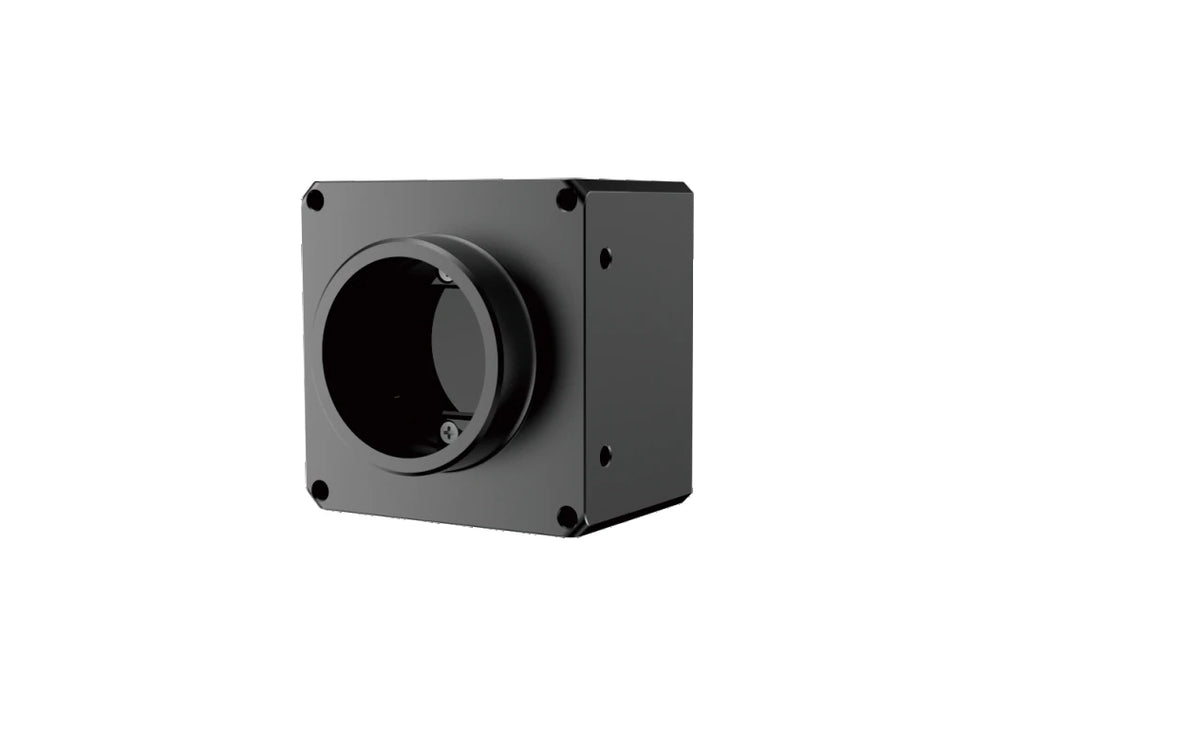

Representative photo of this series

Board-level cameras

GigE board camera / module, 12 MP, GigE, Color/Mono, 1.6μm×1.6μm pixels (LS-BCM-0056)

Model LS-BCM-0056

InterfaceGigE (GigE Vision, GenICam)
Speed4000×3000@9.75FPS
Pixel size1.6μm×1.6μm
Sensor format1/2"

$209.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Single-board Gigabit Ethernet camera modules designed to be compatible with GigE Vision and GenICam standards, fully compatible with mainstream vision software such as LabVIEW, Halcon and VisionPro. Suitable for electronics/semiconductor, factory automation, food and beverage, pharmaceutical packaging and image measurement.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BCM-0056

Sensor and imaging

Resolution @ frame rate	4000×3000@9.75FPS
Shutter mode	Rolling Shutter
Effective pixel	12MP
Pixel size	1.6μm×1.6μm
Sensor	1/2"CMOS AR1202
Maximum gain (multiple)	64
Exposure time range (ms)	0.034~9792
Pixel bit depth	8bit

Interfaces and I/O

Interface	GigE (GigE Vision, GenICam)
Video output format	Color: Bayer 8bit; Mono: Mono 8bit

Light

Mono / colour	Color/Mono

Mechanical

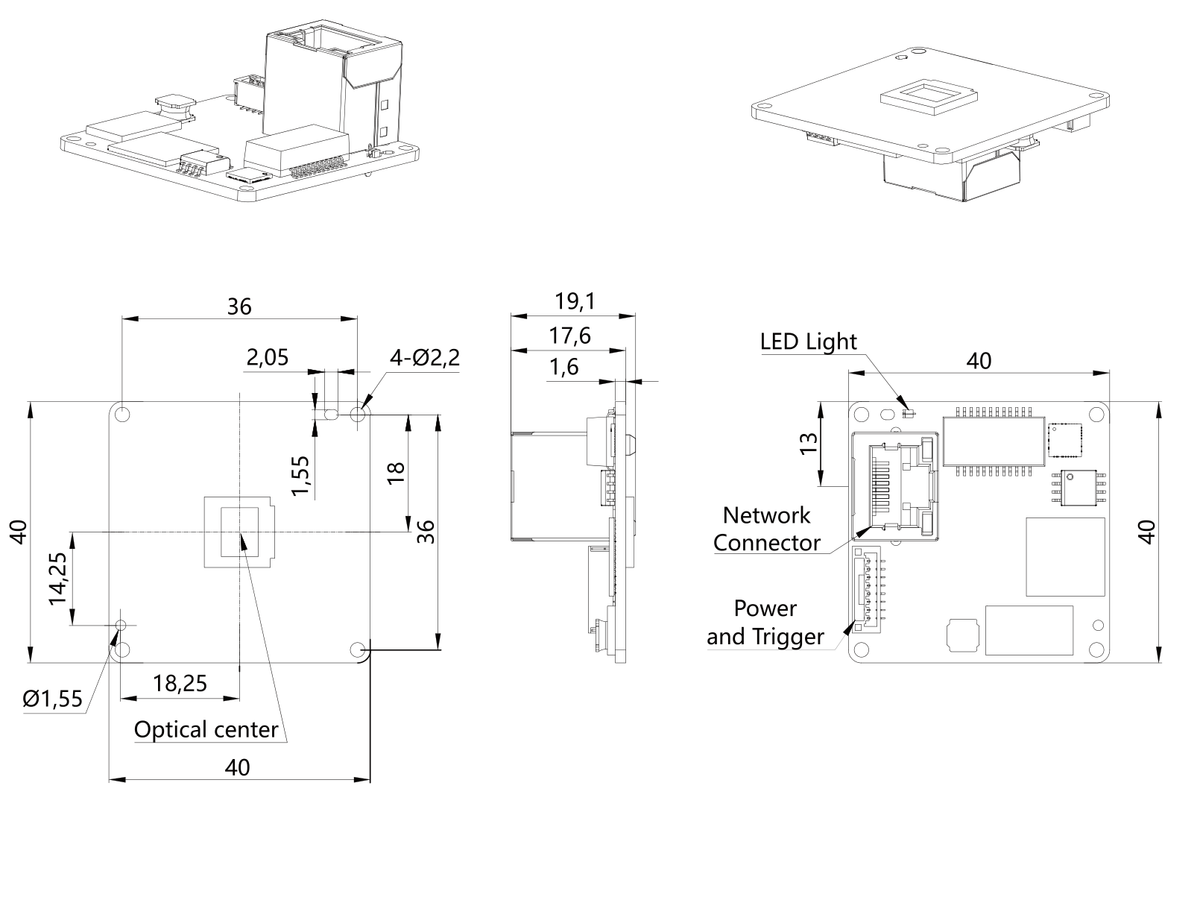

Single board module size	40 x 40 mm board (drawing)
Housed camera size	43 x 43 mm front, C-mount (C Mouth 1-32UN, depth 8) (drawing)
AD width	10bit
Shipping weight	0.31 kg

Downloads

Datasheet (PDF)LS-BCM-0056 · 2.7 MB

Features

Single board design, small size, ultra-thin
Embedded system integration is more convenient and integrated
Supports 16bit gray and 48bit color lossless format output
Multiple options available: single board / C interface / M12 interface
Programmable IO, supports external trigger and flash synchronous photography
Supports PC Linux and ARM Linux, can be integrated into embedded devices
Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Comes with programmable IO.
Supports 16bit mono and 48bit color lossless format output.
Multiple options are available:single board,C interface,M12 interface.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronics / semiconductor
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement
