Board-level cameras

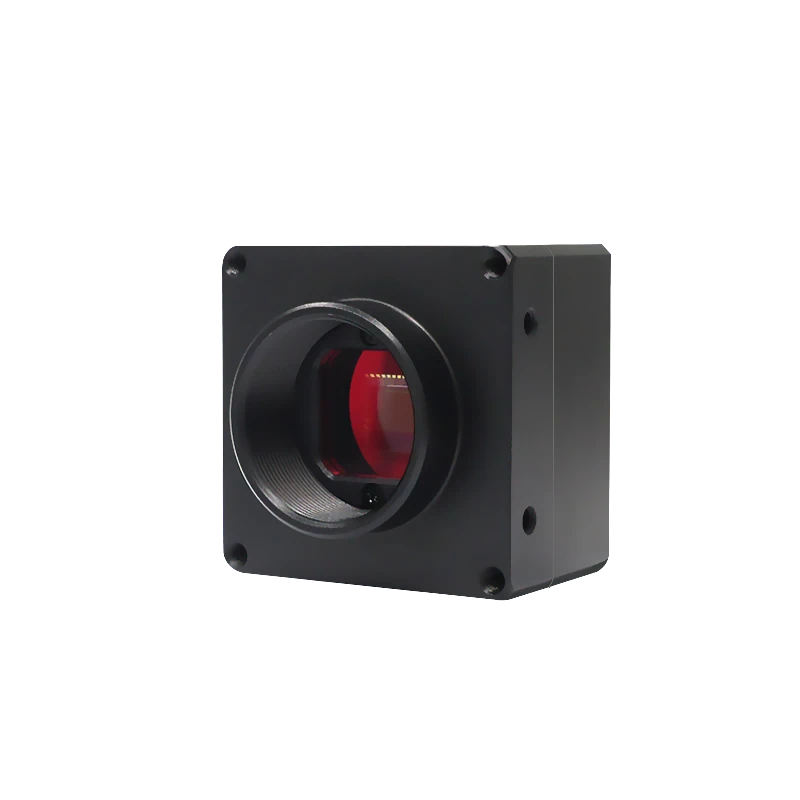

GigE board camera / module, 5.1 MP, GigE, Color/Mono, 2.0umx2.0 μm pixels (LS-BCM-0052)

Model LS-BCM-0052

Resolution5MP
InterfaceGigE (GigE Vision, GenICam)
Speed2608x1958@24FPS
Lens mountC-mount
Pixel size2.0umx2.0 μm

$209.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Single-board Gigabit Ethernet camera modules designed to be compatible with GigE Vision and GenICam standards, fully compatible with mainstream vision software such as LabVIEW, Halcon and VisionPro. Suitable for electronics/semiconductor, factory automation, food and beverage, pharmaceutical packaging and image measurement.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BCM-0052
Sensitivity	2500mV/lux·s@540nm
Frame buffer	128MB
Camera custom data	2KB
Drivers	Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component
Programming language package	Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more

Sensor and imaging

Sensor	1/2.7" CMOS
Shutter	Rolling
Pixel size	2.0umx2.0 μm
Resolution	5MP
Frame rate	2608x1958@24FPS
Output pixel width	10bit
Maximum gain	16
Exposure time (ms)	0.021~1376.2
SNR	39.5dB

Interfaces and I/O

Interface	GigE (GigE Vision, GenICam)
GPIO	1 optical coupling isolated input, 2 optical coupling isolated output
Video output format	Bayer GR 8bit/Mono 8bit
Visual standard protocol	GigE Vision V1.2 , GenICam
Data interface	GigE

Light

Color/Mono	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Temperature	Working temperature:0~50° Storage temperature:-30~60°

Computing

Operating system	WINXP, WIN7/8/10 32-bit & 64-bit systems, Linux and ARM Linux drivers, Android platform drivers, MAC OS systems

Electrical

Power supply	12~24V
Power	2.66W
Voltage	12~24V

Mechanical

Single board module size	40 x 40 mm board (drawing)
Housed camera size	43 x 43 mm front, C-mount (C Mouth 1-32UN, depth 8) (drawing)
AD width	12bit
Lens mount	C
Dimensions	43x43x28.7mm (excluding lens base and rear shell interface)
Weight	75g

Downloads

Datasheet (PDF)LS-BCM-0052 · 2.7 MB

Features

Single board design, small size, ultra-thin
Embedded system integration is more convenient and integrated
Supports 16bit gray and 48bit color lossless format output
Multiple options available: single board / C interface / M12 interface
Programmable IO, supports external trigger and flash synchronous photography
Supports PC Linux and ARM Linux, can be integrated into embedded devices
Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Comes with programmable IO.
Supports 16bit mono and 48bit color lossless format output.
Multiple options are available:single board,C interface,M12 interface.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronics / semiconductor
Factory automation
Food and beverage
Pharmaceutical packaging
Image measurement
