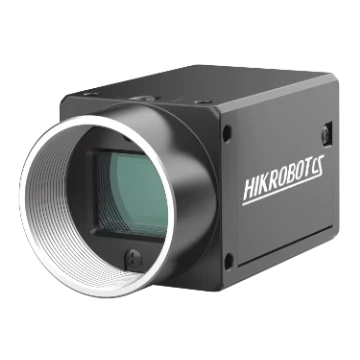

Hikrobot XXV-020C-XIG 2 MP GigE area scan camera, IMX430, Color
Model XXV-020C-XIG
Hikrobot XXV-020C-XIG 2 MP GigE area scan camera, IMX430, Color. New hardware platform with optimized logic resources for greatly reduced power consumption Feature-rich: Sequencer, contrast, SuperPalette and more
Features
- New hardware platform with optimized logic resources for greatly reduced power consumption
- Feature-rich: Sequencer, contrast, SuperPalette and more
- Supports hardware trigger, software trigger and free-run modes
- New-generation housing design with four-side mounting
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
Specifications
| Model | XXV-020C-XIG |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX430 |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 1/1.7” |
| Resolution | 1624 × 1240 |
| Max. frame rate | 60 fps @1624x1240 Bayer RG 8 |
| Dynamic range | 72.1 dB |
| SNR | 43.8 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | Ultra-short exposure mode: 1 μs to 5 μs; Standard exposure mode: 6 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 3 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
