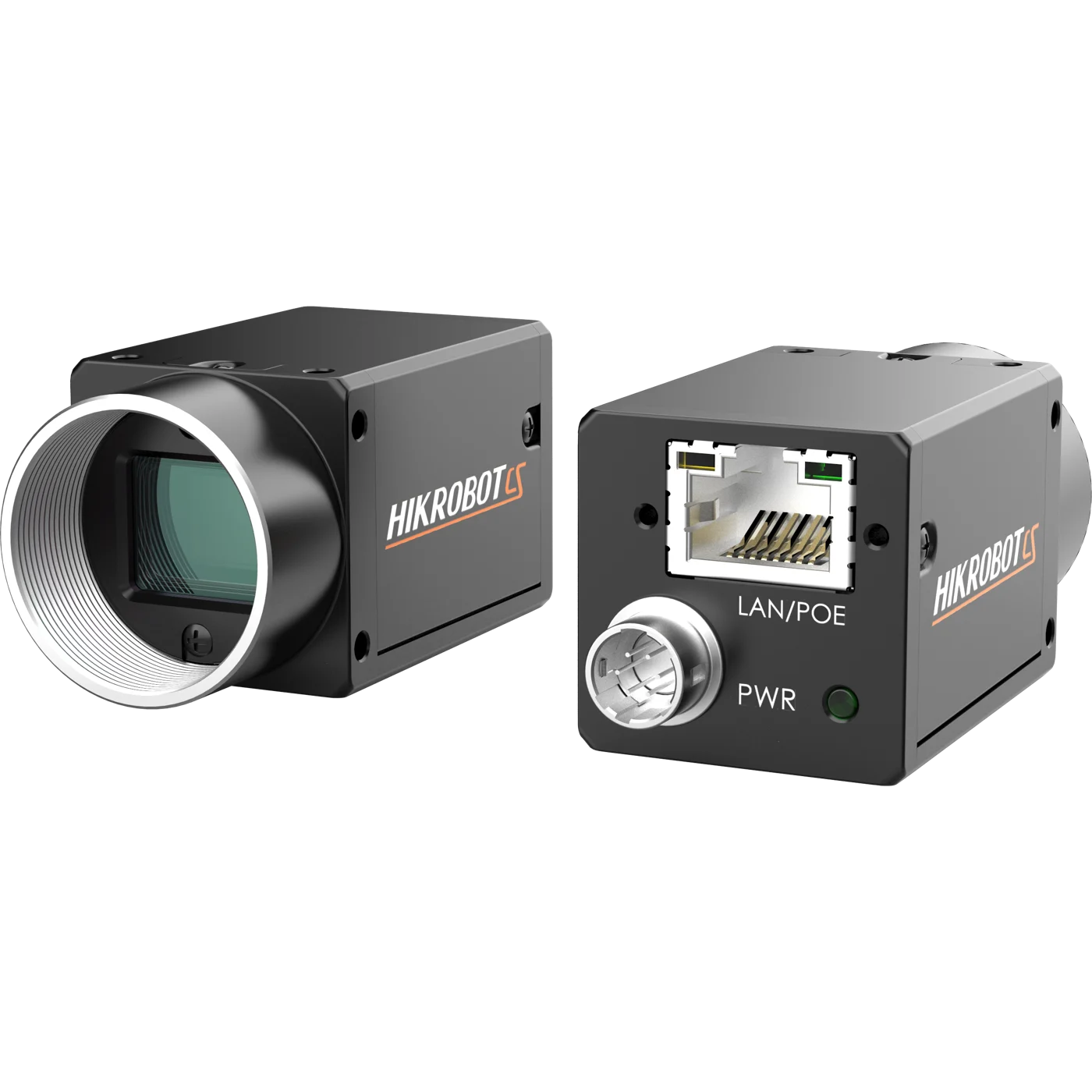

Hikrobot MV-CS023-10GM 2.3MP Area Scan Camera, GigE, IMX249, 2nd Generation, Mono
Model MV-CS023-10GM
Hikrobot MV-CS023-10GM 2.3MP Area Scan Camera, GigE, IMX249, 2nd Generation, Mono. Adopts brand new design to reduce power consumption. Compact design with mounting holes on panels for flexible mounting from 4 sides.
Datasheet (PDF) - MV-CS023-10GMUser manual (PDF) - MV-CS023-10GMCAD: 3D STEP + 2D DXF (ZIP) - MV-CS023-10GM
Features
- Adopts brand new design to reduce power consumption.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS023-10GM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX249 |
| Pixel size | 5.86 μm × 5.86 μm |
| Sensor size | 1/1.2" |
| Resolution | 1920 × 1200 |
| Max. frame rate | 41 fps @1920 × 1200 Mono 8 |
| Dynamic range | 72.6 dB |
| SNR | 44.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.2 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
