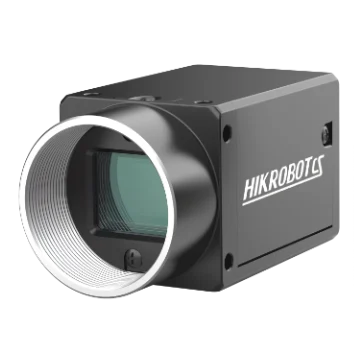

Hikrobot MV-CS013-60GN 1.3MP Area Scan Camera, GigE, NIR
Model MV-CS013-60GN
Hikrobot MV-CS013-60GN 1.3MP Area Scan Camera, GigE, NIR. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, LUT, etc., and supports Sequencer function.
Datasheet (PDF) - MV-CS013-60GNUser manual (PDF) - MV-CS013-60GNCAD: 3D STEP + 2D DXF (ZIP) - MV-CS013-60GN
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, LUT, etc., and supports Sequencer function.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS013-60GN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 2/3" |
| Resolution | 1224 × 1024 |
| Max. frame rate | 59.2 fps @ 1224 × 1024 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 30 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Near-infrared |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Not supported |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 1.9 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (No condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
