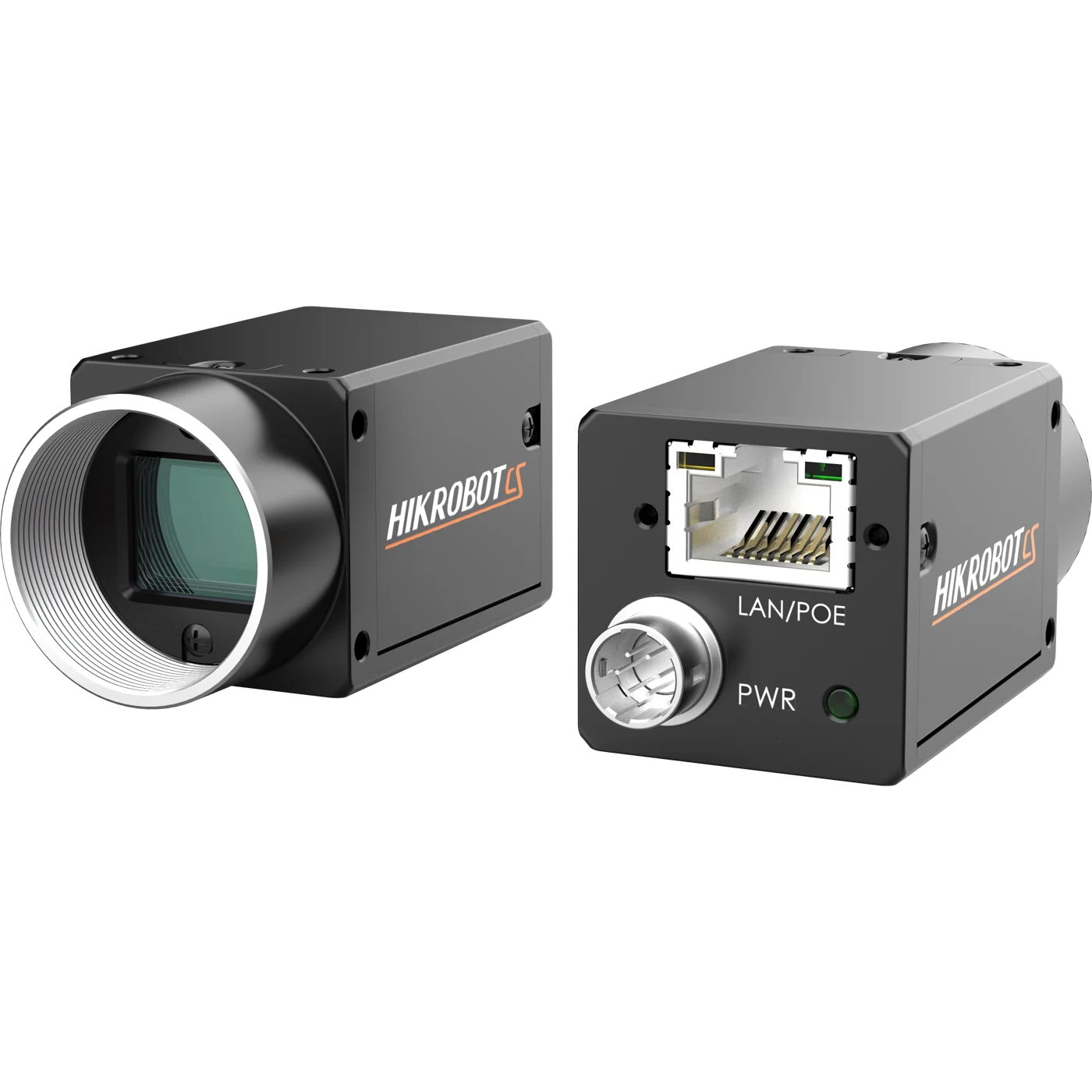

Hikrobot MV-CS200-10GM 20MP Area Scan Camera, GigE, IMX183, Mono, Basic
Model MV-CS200-10GM
Hikrobot MV-CS200-10GM 20MP Area Scan Camera, GigE, IMX183, Mono, Basic. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc. Supports multiple ISP functions like CCM to provide high-quality images.
Datasheet (PDF) - MV-CS200-10GMUser manual (PDF) - MV-CS200-10GMCAD: 3D STEP + 2D DXF (ZIP) - MV-CS200-10GM
Features
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports multiple ISP functions like CCM to provide high-quality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS200-10GM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX183 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Max. frame rate | 5.9 fps @ 5472 × 3648 |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 46 μs to 2.5 sec |
| Exposure mode | Off/Once/Continuous exposure auto, supports Timed and Trigger Width exposure mode, and Rolling and Global Reset sensor shutter mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.4 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 74.1% |
| EMVA dark noise | 6.6 e-@10-bit |
| EMVA signal-to-noise ratio | 41.4 dB |
| EMVA saturation capacity | 13.8 ke- |
| EMVA dynamic range | 65.7 dB |
| Shipping weight (estimated) | 0.24 kg |
