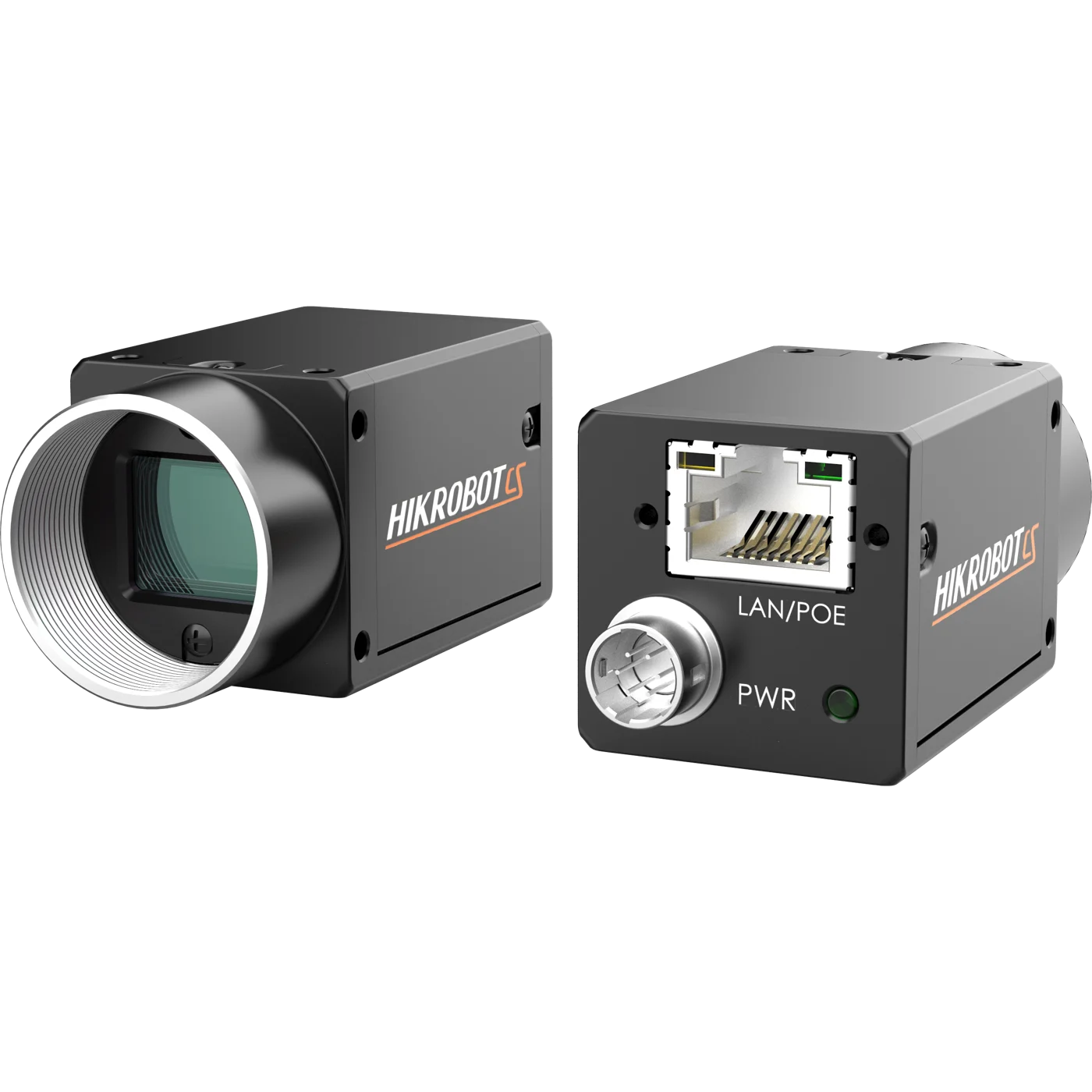

Hikrobot MV-CS060-10GM-PRO 6MP Area Scan Camera, GigE, IMX178, Mono, PRO
Model MV-CS060-10GM-PRO
Hikrobot MV-CS060-10GM-PRO 6MP Area Scan Camera, GigE, IMX178, Mono, PRO. Adopts brand new design to reduce power consumption. Supports image compression mode and noise reduction function.
Datasheet (PDF) - MV-CS060-10GM-PROUser manual (PDF) - MV-CS060-10GM-PROCAD: 3D STEP + 2D DXF (ZIP) - MV-CS060-10GM-PRO
Features
- Adopts brand new design to reduce power consumption.
- Supports image compression mode and noise reduction function.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS060-10GM-PRO |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.1 fps @ 3072 × 2048; 30.7 fps @ 3072 × 2048; (image compression mode enabled) |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 25 μs to 2.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Mono | Mono |
| Pixel format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.4 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.22 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 83.8% |
| EMVA dark noise | 2.8 e-@10-bit |
| EMVA signal-to-noise ratio | 41.2 dB |
| EMVA saturation capacity | 13.9 ke- |
| EMVA dynamic range | 71.5 dB |
| Shipping weight (estimated) | 0.24 kg |
