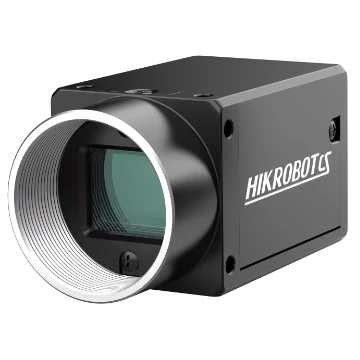

Hikrobot MV-CS120-60GM V5 12MP Area Scan Camera, GigE, V5, Mono
Model MV-CS120-60GM V5
Hikrobot MV-CS120-60GM V5 12MP Area Scan Camera, GigE, V5, Mono. Provides optimized hardware design, stable performance, and low power consumption. Supports auto or manual adjustment of gain, exposure time, etc.
Features
- Provides optimized hardware design, stable performance, and low power consumption.
- Supports auto or manual adjustment of gain, exposure time, etc.
- Supports hardware triggers, software triggers, and anyway mode.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS120-60GM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Stacked BSI |
| Pixel size | 2.0 μm × 2.0 μm |
| Sensor size | 1/1.56" |
| Resolution | 4096 × 3024 |
| Max. frame rate | 9.9 fps @ 4096 × 3024 Mono 8 |
| Dynamic range | 68.5 dB |
| SNR | 38.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 53 μs to 1.9 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 1.4 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 99.2 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
