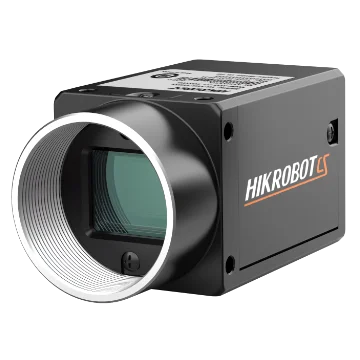

Hikrobot SC-HCS020-60GM 2 MP 1/1.7" CMOS Gigabit Ethernet industrial area scan camera

Area scan cameras

Hikrobot SC-HCS020-60GM 2 MP 1/1.7" CMOS Gigabit Ethernet industrial area scan camera

Model SC-HCS020-60GM

Hikrobot SC-HCS020-60GM 2 MP 1/1.7" CMOS Gigabit Ethernet industrial area scan camera. New hardware platform with optimized logic resources for greatly reduced power consumption Feature-rich: Sequencer, contrast, SuperPalette and more

Price on request
0.24 kg shipping weight · Ships in 2-3 weeks

Build a system with this camera → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - SC-HCS020-60GM

Features

  • New hardware platform with optimized logic resources for greatly reduced power consumption
  • Feature-rich: Sequencer, contrast, SuperPalette and more
  • Supports hardware trigger, software trigger and free-run modes
  • New-generation housing design with four-side mounting
  • Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software

Specifications

ModelSC-HCS020-60GM
BrandHikrobot
Sensor typeCMOS, global shutter
Sensor modelSony IMX430
Pixel size4.5 μm × 4.5 μm
Sensor size1/1.7”
Resolution1624 × 1240
Max. frame rate60 fps @1624x1240 Mono 8
Dynamic range72.1 dB
SNR43.8 dB
Gain0 dB ~ 24 dB
Exposure timeUltra-short exposure mode: 1 μs to 5 μs; Standard exposure mode: 6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumption2.8 W@12 VDC
Lens mountC-Mount
Dimension29 mm × 29 mm × 42 mm
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Shipping weight (estimated)0.24 kg
