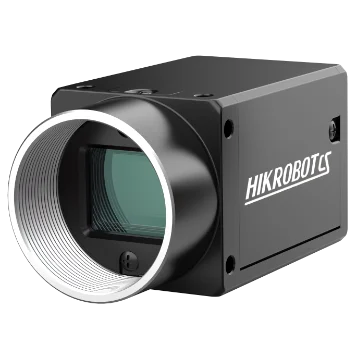

Hikrobot HIK-C020-CG 2 MP CMOS Gigabit Ethernet industrial area scan camera
Model HIK-C020-CG
Hikrobot HIK-C020-CG 2 MP CMOS Gigabit Ethernet industrial area scan camera. New hardware platform with optimized logic resources for greatly reduced power consumption Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
Features
- New hardware platform with optimized logic resources for greatly reduced power consumption
- Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
- Built-in noise reduction, CCM and more for excellent image quality
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- New-generation housing design with four-side mounting
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software
Specifications
| Model | HIK-C020-CG |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.53” |
| Resolution | 1624 × 1240 |
| Max. frame rate | 60.3 fps @1624 × 1240 Bayer GB 8 |
| Dynamic range | 66.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 23 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 1.9 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
