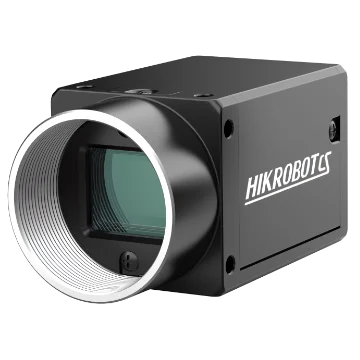

Hikrobot MV-CS032-60GC V5 3.2MP Area Scan Camera, GigE, V5, Color
Model MV-CS032-60GC V5
Hikrobot MV-CS032-60GC V5 3.2MP Area Scan Camera, GigE, V5, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function.
Datasheet (PDF) - MV-CS032-60GC V5User manual (PDF) - MV-CS032-60GC V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CS032-60GC V5
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function.
- Supports ISP functions like CCM, Super Palette, and Super Bayer to provide high-quality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CS032-60GC V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.8" |
| Resolution | 2048 × 1536 |
| Exposure time | Full well mode: 30 μs to 10 sec; High sensitivity mode: 5 μs to 10 sec |
| Gain | Full well mode: 0 dB to 12.8 dB; High sensitivity mode: 0 dB to 24 dB |
| Mono/color | Color |
| Max. frame rate | 38.9 fps @ 2048 × 1536 Bayer GR 8 |
| Pixel format | Mono 8, ; Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Sensor model | Stacked BSI |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Exposure mode | Off/Once/Continuous exposure mode |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power consumption | Typ. 1.7 W @ 12 VDC |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Lens mount | C-mount |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
