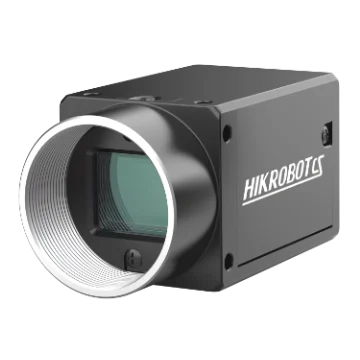

Hikrobot SY-2000M 20 MP 1" CMOS Gigabit Ethernet industrial area scan camera
Model SY-2000M
Hikrobot SY-2000M 20 MP 1" CMOS Gigabit Ethernet industrial area scan camera. Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more Integrated ISP algorithms including CCM and LSC correction
Features
- Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
- Integrated ISP algorithms including CCM and LSC correction
- New-generation housing design with four-side mounting
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless connection to third-party software
Specifications
| Model | SY-2000M |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX183 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1” |
| Resolution | 5472 × 3648 |
| Max. frame rate | 5.9 fps @5472 × 3648 Mono 8 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 46 μs ~ 2.5 sec |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Rolling and Global Reset mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 2.4 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
