Area scan cameras

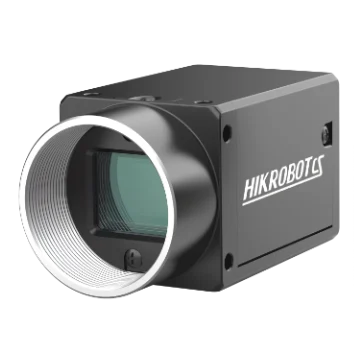

Hikrobot XXV-050M-XIG 5 MP GigE area scan camera, IMX264, Mono
Model XXV-050M-XIG
Hikrobot XXV-050M-XIG 5 MP GigE area scan camera, IMX264, Mono. New hardware platform with optimized logic resources for greatly reduced power consumption Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
Features
- New hardware platform with optimized logic resources for greatly reduced power consumption
- Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
- Built-in CCM (color correction matrix) for excellent image quality
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- New-generation housing design with four-side mounting
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
Specifications
| Model | XXV-050M-XIG |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX264 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3” |
| Resolution | 2448 × 2048 |
| Max. frame rate | 24.2 fps @2448 × 2048 Mono 8 |
| Dynamic range | 72 dB |
| SNR | 40 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | Ultra-short exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 2.6 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
