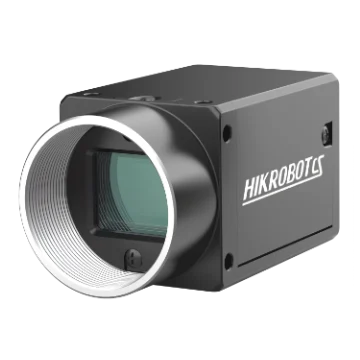

Hikrobot MV-XD6010GM V5 6MP Area Scan Camera, GigE, V5, Color
Model MV-XD6010GM V5
Hikrobot MV-XD6010GM V5 6MP Area Scan Camera, GigE, V5, Color. New hardware platform with optimized logic resources for greatly reduced power consumption Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
Features
- New hardware platform with optimized logic resources for greatly reduced power consumption
- Automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction and more
- Built-in CCM (color correction matrix) for excellent image quality
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- New-generation housing design with four-side mounting
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software
Specifications
| Model | MV-XD6010GM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8” |
| Resolution | 3072 × 2048 |
| Max. frame rate | 19.5 fps @3072 × 2048 Mono 8 |
| Dynamic range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | 25 μs ~ 2.5 sec |
| Exposure mode | 71.3 dB |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | 1.4W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10/11 32/64bits, Linux 32/64bits |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.24 kg |
