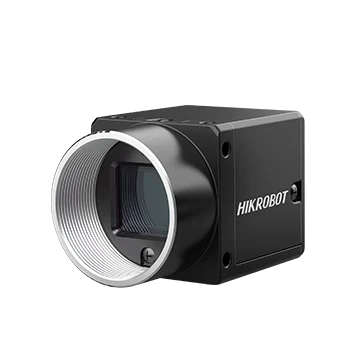

Hikrobot MVGL-AC245G-74UP 5 MP 2/3" CMOS USB3.0 industrial area scan camera
Model MVGL-AC245G-74UP
Hikrobot MVGL-AC245G-74UP 5 MP 2/3" CMOS USB3.0 industrial area scan camera. Compact design with four-side mounting LSC lens shading correction, Sequencer and Super Palette functions
Features
- Compact design with four-side mounting
- LSC lens shading correction, Sequencer and Super Palette functions
- Automatic or manual adjustment of gain, exposure time, gamma correction, LUT and more
- Supports hardware trigger, software trigger and free-run modes
- Custom ROI with horizontal and vertical mirroring
- Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
Specifications
| Model | MVGL-AC245G-74UP |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX250MZR |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3” |
| Resolution | 2448 × 2048 |
| Max. frame rate | 74.1 fps@2448 × 2048Mono 8 |
| Dynamic range | 71 dB |
| SNR | 40 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | Ultra-short exposure mode: 1 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Polarized |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, Includes: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2) |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | 3.3 W @ 5 VDC (USB 3.0 powered) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Operating temperature -10°C to 50°C, Storage temperature -30°C to 70°C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
