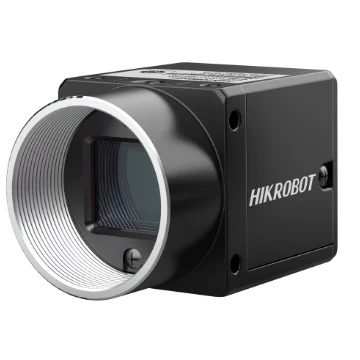

Hikrobot HIK-C050-C 5 MP 2/3" CMOS USB3.0 industrial area scan camera
Model HIK-C050-C
Hikrobot HIK-C050-C 5 MP 2/3" CMOS USB3.0 industrial area scan camera. New-generation housing design with four-side mounting Sequencer, SuperPalette and SuperBayer functions for excellent image quality
Features
- New-generation housing design with four-side mounting
- Sequencer, SuperPalette and SuperBayer functions for excellent image quality
- Auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT and more
- Supports hardware trigger, software trigger and free-run modes
- Custom ROI with horizontal and vertical mirroring
- Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
Specifications
| Model | HIK-C050-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3” |
| Resolution | 2448 × 2048 |
| Max. frame rate | 79 fps@2448 × 2048 Bayer GR 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | High full-well mode: 0 dB to 13 dB; High sensitivity mode: 0 dB to 24 dB |
| Exposure time | High full-well mode: 30 μs to 10 sec; High-sensitivity mode: 5 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer GR 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.2 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (–14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
