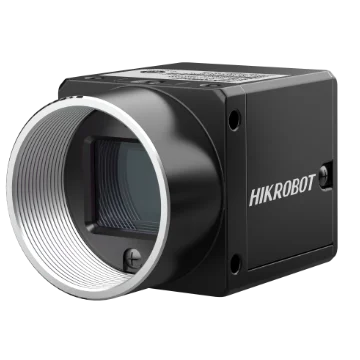

Hikrobot HIK-C120-C 12 MP 1.1" CMOS USB3.0 industrial area scan camera
Model HIK-C120-C
Hikrobot HIK-C120-C 12 MP 1.1" CMOS USB3.0 industrial area scan camera. Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more Custom ROI; horizontal or vertical mirroring
Features
- Automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction and more
- Custom ROI; horizontal or vertical mirroring
- Hardware trigger, software trigger and free-run modes
- Compliant with the USB3 Vision protocol and GenICam standard for seamless connection to third-party software platforms
Specifications
| Model | HIK-C120-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX304 |
| Pixel size | 3.45 μm×3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 23.1 fps@4096 × 3000 Bayer RG 8 |
| Dynamic range | 72.2 dB |
| SNR | 40.2 dB |
| Gain | 0 dB ~ 20 dB |
| Exposure time | Ultra-short exposure mode: 2 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB8, BGR8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 12 VDC, USB power supported |
| Power consumption | 3.5 W @ 5 VDC (USB 3.0 powered) |
| Lens mount | C-Mount |
| Dimension | 44 mm × 29 mm × 59 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (with lens and cables properly installed) |
| Temperature | Operating temperature: 0 to 50 ℃, Storage temp.: -30 to 80 °C |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
