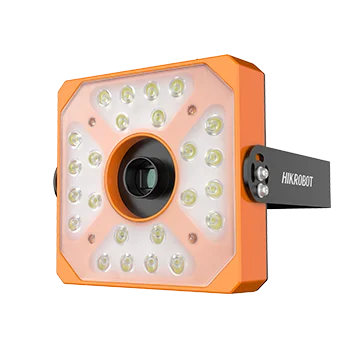

Hikrobot MV-PD010003-06C-12C 6 MP color all-in-one code reading kit
Model MV-PD010003-06C-12C
Hikrobot MV-PD010003-06C-12C 6 MP color all-in-one code reading kit. In-house high-performance barcode recognition technology Combines image and data acquisition with local storage and upload for full traceability
Datasheet (PDF, Chinese) - MV-PD010003-06C-12CUser manual (PDF, Chinese) - MV-PD010003-06C-12CCAD: 3D STEP + 2D DXF (ZIP) - MV-PD010003-06C-12C
Features
- In-house high-performance barcode recognition technology
- Combines image and data acquisition with local storage and upload for full traceability
- Integrated structure for quick installation and high luminous efficiency
- Dynamic brightness adjustment; light on/off controlled by software
- High-end materials and professional design: long service life, stable performance, strong environmental adaptability
- Seamless integration with common express logistics management systems, delivering real-time data to logistics and manufacturing companies
Specifications
| Model | MV-PD010003-06C-12C |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, Codabar, EAN; 2D codes: QR Code, Data Matrix |
| Focal length | 12 mm |
| Best working distance | 900 mm |
| Field of view (range) | 550 mm × 340 mm @ 10 mil |
| Depth of field | 500 mm |
| Resolution | 3072 × 2048 |
| Max. frame rate | 17 fps @ 3072×2048 |
| Aperture | F2.8 ~ F16 |
| Center illuminance | 5800 lux@1000 mm |
| Uniformity | 0.53 |
| Luminous flux | 2500 lm |
| Light source wavelength | 420 ~ 730 nm |
| Color temperature | 5700 K |
| Mono/color | Color |
| Pixel format | Mono8, Bayer8, YUV 422 Packed, YUV422(YUYV) |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 24 VDC |
| Max. power consumption | 20 W |
| Dimension (without lens) | 149.6 mm × 164.2 mm × 159.1 mm |
| Weight (without lens) | Approx. 1035 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS, Code Platform |
| Operating system | Windows XP/7/10 32/64bits |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.55 kg |
