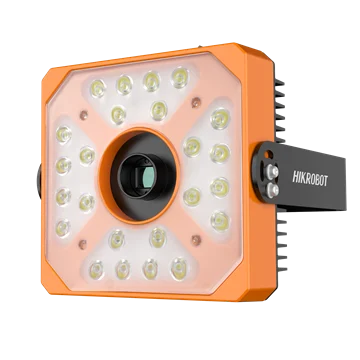

Hikrobot MV-IDS012M-16C-OCR 12 MP logistics code reader with OCR
Model MV-IDS012M-16C-OCR
Hikrobot MV-IDS012M-16C-OCR 12 MP logistics code reader with OCR. Built-in deep-learning decoding algorithm robustly reads 1D and 2D codes across many symbologies Image acquisition, data processing and result output in one unit
Datasheet (PDF, Chinese) - MV-IDS012M-16C-OCRUser manual (PDF, Chinese) - MV-IDS012M-16C-OCRCAD: 3D STEP + 2D DXF (ZIP) - MV-IDS012M-16C-OCR
Features
- Built-in deep-learning decoding algorithm robustly reads 1D and 2D codes across many symbologies
- Image acquisition, data processing and result output in one unit
- High-accuracy OCR of the three-segment routing code on parcel waybills
- Integrated structural design for quick installation
- Concentrated light with high luminous efficiency
- High-end materials and professional design: long service life, stable performance, strong environmental adaptability
- Seamless integration with common express logistics management systems, delivering real-time data to logistics and manufacturing companies
Specifications
| Model | MV-IDS012M-16C-OCR |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 128, Code 39, Code 93, Codabar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE; 2D code: QR Code, Data Matrix, PDF417 |
| Max. frame rate | Code reading: 20 fps; Code reading + OCR: 3 fps |
| Focal length | 16 mm |
| Best working distance | 1870 mm |
| Field of view (range) | 870 mm × 635 mm@ 10 mil |
| Depth of field | 700 mm |
| Resolution | 3968 × 3000 |
| Exposure time | 48 μs ~ 0.5 sec |
| Gain | 0 ~ 40 dB |
| Aperture | F2.4 ~ F16 |
| Center illuminance | 11000 lux @ 1000 mm |
| Uniformity | 0.56 |
| Luminous flux | 5200 lm |
| Light source wavelength | 420 nm ~ 730 nm |
| Color temperature | 6500 K |
| Mono/color | Mono |
| Pixel format | Mono 8 |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4).; 3-pin green terminal provides RS-232 serial port. |
| Power supply | 24 VDC |
| Max. power consumption | 53 W@ 24 VDC |
| Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm |
| Weight (without lens) | Approx. 990 g (2.2 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | IDMVS |
| Operating system | Windows XP/7/10 32/64bits |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.49 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the PD Series Logistic Code Reading Set series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDS012M-16C-C | 11.9 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-IDS006M-12C-C | 6.3 MP, 12 mm lens | Price on request | 3 in stock | View |
| MV-IDS020M-20C-C | 19.8 MP, 20 mm lens | Price on request | 4 in stock | View |
| MV-PD010003-06M-12C | 6.3 MP, 12 mm lens | Price on request | 4 in stock | View |
| MV-PD010003-12M-16C | 12.2 MP, 16 mm lens | Price on request | 3 in stock | View |
| MV-PD010003-12C-8C | 12.2 MP, 8 mm lens | Price on request | 4 in stock | View |
| MV-PD010003-06C-12C | 6.3 MP, 12 mm lens | Price on request | 4 in stock | View |
| MV-PD010003-06M-16C | 6.3 MP, 16 mm lens | Price on request | 5 in stock | View |
