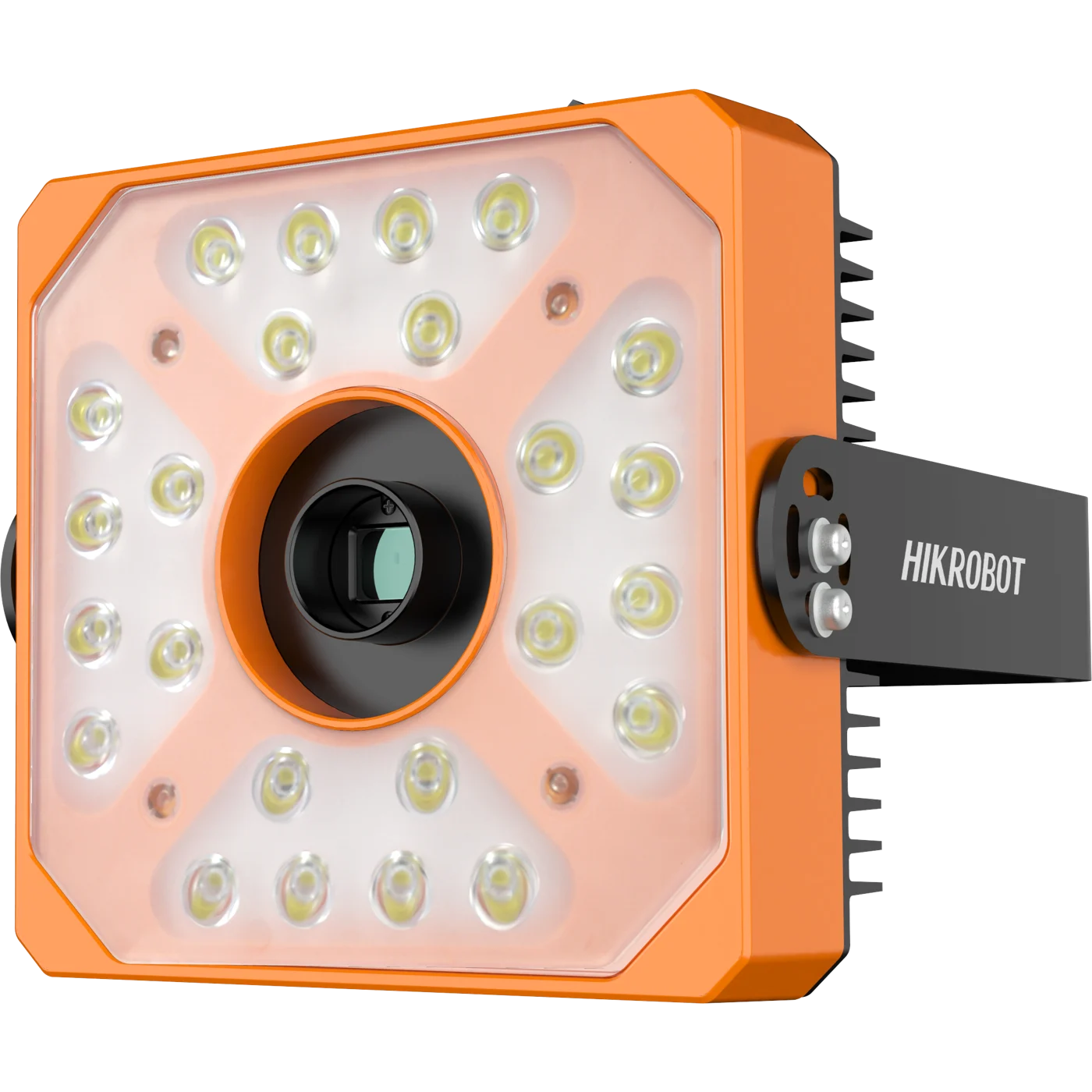

Hikrobot MV-PD010003-12M-16C 12MP Logistic Code Reading Set
Model MV-PD010003-12M-16C
Hikrobot MV-PD010003-12M-16C 12MP Logistic Code Reading Set. Adopts code recognition technology. Supports acquisition and integration of data and images.
Datasheet (PDF) - MV-PD010003-12M-16CUser manual (PDF) - MV-PD010003-12M-16CCAD: 3D STEP + 2D DXF (ZIP) - MV-PD010003-12M-16C
Features
- Adopts code recognition technology.
- Supports acquisition and integration of data and images.
- Supports local data storage, uploading, and tracking.
- Adopts integrated structure to facilitate installation.
- Centralized light with high luminescence efficiency.
- Long service life time, and stable performance.
- Provides real-time and effective data for logistics related enterprises.
Specifications
| Model | MV-PD010003-12M-16C |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, Codabar, EAN; 2D codes: QR Code, Data Matrix |
| Focal length | 16 mm |
| Best working distance | 1550 mm |
| Field of view (range) | 730 mm × 550 mm @10 mil |
| Depth of field | 650 mm |
| Resolution | 4024 × 3036 |
| Max. frame rate | 9.6 fps @4024 × 3036 |
| Aperture | F2.8 to F16 |
| Center illuminance | 9000 lux @1000 mm |
| Uniformity | 0.56 |
| Luminous flux | 5900 lm |
| Light source wavelength | 420 nm to 730 nm |
| Color temperature | 6500 K |
| Mono/color | Mono |
| Pixel format | Mono 8 |
| Data interface | Gigabit Ethernet |
| Digital I/O | 6-pin connecting terminal provides power and I/O, including opto-isolated input × 1 (Line 0), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 24 VDC |
| Max. power consumption | 44 W |
| Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3") |
| Weight (without lens) | Approx. 1500 g (3.3 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | MVS, Code Platform |
| Operating system | 32/64-bit Windows XP/7/10 |
| Certification | CE, KC |
| Shipping weight (estimated) | 2.20 kg |
