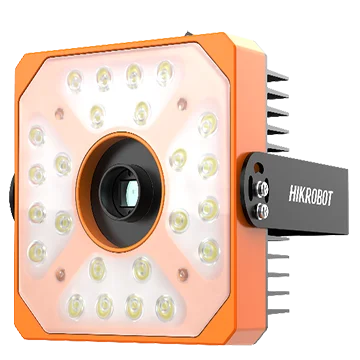

Hikrobot MV-IDS012M-16C-C 12MP Logistic Code Reader
Model MV-IDS012M-16C-C
Hikrobot MV-IDS012M-16C-C 12MP Logistic Code Reader. Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness. Integrates functions of image acquisition, data processing, and result output.
Datasheet (PDF) - MV-IDS012M-16C-CUser manual (PDF) - MV-IDS012M-16C-CCAD: 3D STEP + 2D DXF (ZIP) - MV-IDS012M-16C-C
Features
- Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.
- Integrates functions of image acquisition, data processing, and result output.
- Adopts integrated structure design for convenient installation.
- Centralized light with high luminescence efficiency.
- Long lifetime, stable performance, and strong environmental compatibility.
Specifications
| Model | MV-IDS012M-16C-C |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 20 fps |
| Max. reading speed | 60 codes/sec |
| Focal length | 16 mm (0.6") |
| Best working distance | 1870 mm (73.6") |
| Field of view (range) | 870 mm × 635 mm @10 mil |
| Depth of field | 700 mm (27.6") |
| Resolution | 3968 × 3000 |
| Exposure time | 48 μs to 0.5 sec |
| Gain | 0 dB to 40 dB |
| Aperture | F2.4 to F16 |
| Center illuminance | 11000 lux @1000 mm |
| Uniformity | 0.56 |
| Luminous flux | 5200 lm |
| Light source wavelength | 420 nm to 730 nm |
| Color temperature | 6500 K |
| Mono/color | Mono |
| Pixel format | Mono 8 |
| Data interface | Gigabit Ethernet |
| Digital I/O | 6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4).; 3-pin green terminal provides RS-232 serial port. |
| Power supply | 24 VDC |
| Max. power consumption | 53 W @24 VDC |
| Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3") |
| Weight (without lens) | Approx. 990 g (2.2 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client software | IDMVS |
| Operating system | 32/64-bit Windows XP/7/10 |
| Certification | CE |
| Shipping weight (estimated) | 1.49 kg |
