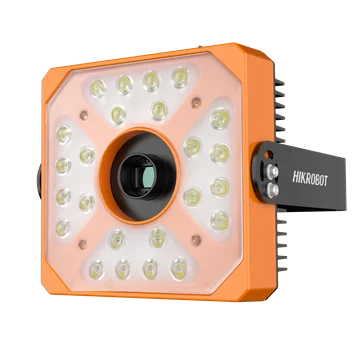

Hikrobot MV-IDS020M-20C-C 20 MP logistics code reader
Model MV-IDS020M-20C-C
Hikrobot MV-IDS020M-20C-C 20 MP logistics code reader. Built-in deep-learning decoding algorithm robustly reads 1D and 2D codes across many symbologies Image acquisition, data processing and result output in one unit
Datasheet (PDF, Chinese) - MV-IDS020M-20C-CUser manual (PDF, Chinese) - MV-IDS020M-20C-CCAD: 3D STEP + 2D DXF (ZIP) - MV-IDS020M-20C-C
Features
- Built-in deep-learning decoding algorithm robustly reads 1D and 2D codes across many symbologies
- Image acquisition, data processing and result output in one unit
- Integrated structural design for quick installation
- Concentrated light with high luminous efficiency
- High-end materials and professional design: long service life, stable performance, strong environmental adaptability
- Seamless integration with common express logistics management systems, delivering real-time data to logistics and manufacturing companies
Specifications
| Model | MV-IDS020M-20C-C |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 10 fps |
| Max. reading speed | 30 codes/sec |
| Focal length | 20 mm |
| Best working distance | 1600 mm |
| Field of view (range) | 1050 mm × 705 mm@ 10 mil |
| Depth of field | 650 mm |
| Resolution | 5440 × 3648 |
| Exposure time | 48 μs ~ 0.5 sec |
| Gain | 0 ~ 40 dB |
| Aperture | F5.6 ~ F9 |
| Center illuminance | 10900 lux@ 1000 mm |
| Uniformity | 0.45 |
| Luminous flux | 5200 lm |
| Light source wavelength | 420 ~ 730 nm |
| Color temperature | 6500 K |
| Mono/color | Mono |
| Pixel format | Mono8 |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 6-pin green terminal block provides power and I/O, Includes 1 opto-isolated input (LineIn 0), 1 opto-isolated output (LineOut 3), 1 non-isolated configurable I/O (LineIn 2/Lineout 4); 3-pin green terminal block provides RS-232 serial port |
| Power supply | 24 VDC |
| Max. power consumption | 53 W@ 24 VDC |
| Dimension (without lens) | 164.2 mm × 149.6 mm × 159.1 mm |
| Weight (without lens) | Approx. 990 g (2.2 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | IDMVS |
| Operating system | Windows XP/7/10 32/64bits |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.49 kg |
