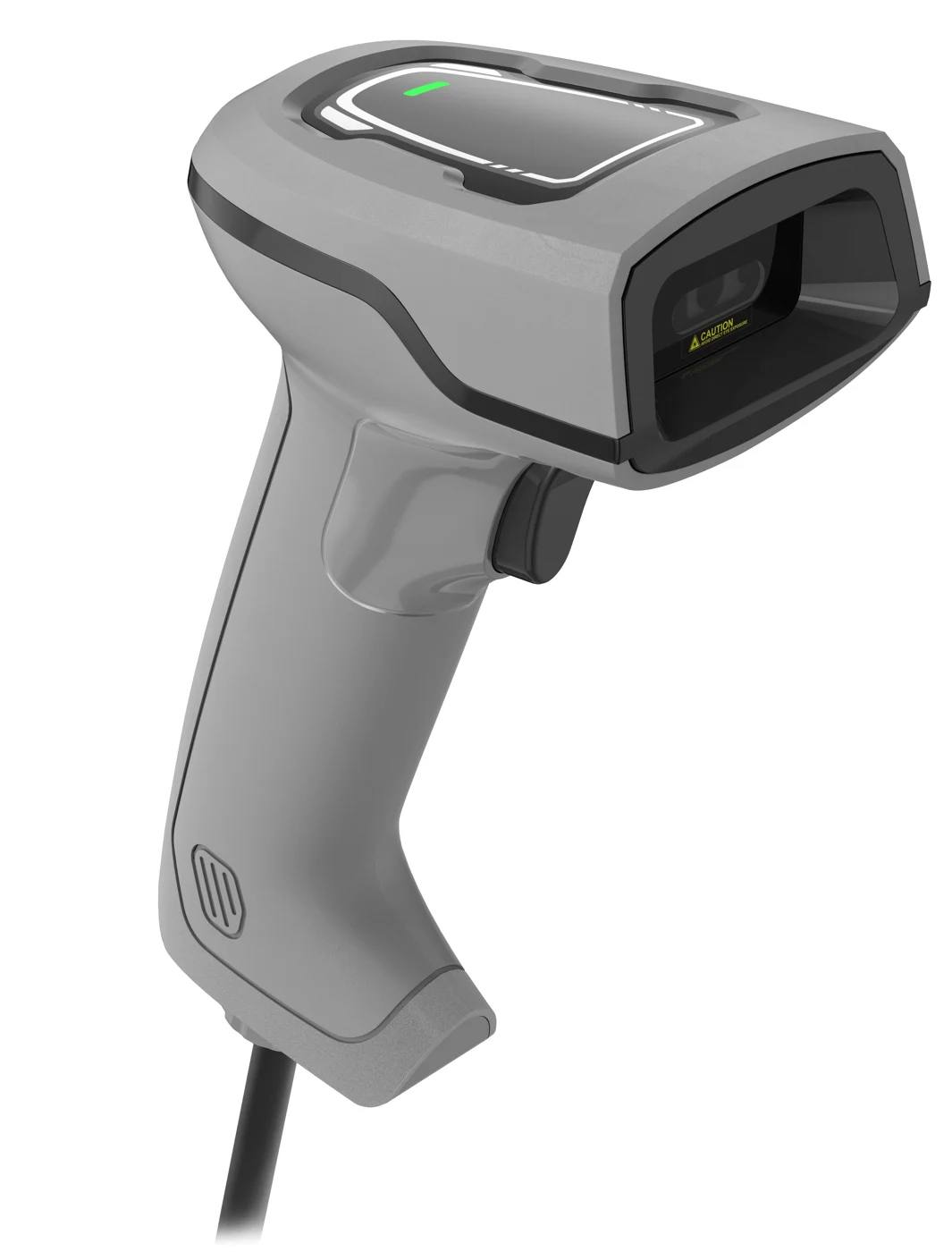

Hikrobot MV-ORH330 Compact industrial handheld code reader
Model MV-ORH330
Hikrobot MV-ORH330 Compact industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads barcodes in retail, e-commerce and enterprise applications Robust algorithm with excellent decoding of damaged, laminated, curved and reflective codes in retail and logistics
Datasheet (PDF, Chinese) - MV-ORH330User manual (PDF, Chinese) - MV-ORH330CAD: 3D STEP + 2D DXF (ZIP) - MV-ORH330
Features
- In-house high-performance barcode algorithm efficiently reads barcodes in retail, e-commerce and enterprise applications
- Robust algorithm with excellent decoding of damaged, laminated, curved and reflective codes in retail and logistics
- Lightweight, compact and durable
- USB-HID, USB-CDC and RS-232 output modes
- Detachable cable design for easy replacement
- IP42 protection and 1.5 m drop resistance
- Beeper and indicator status feedback
Specifications
| Model | MV-ORH330 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, Coda Bar, EAN8, EAN13, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
| Min. accuracy | 4 mil |
| Max. frame rate | 50 fps |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.74 μm × 3.74 μm |
| Sensor size | 1/6'' |
| Resolution | 640 × 480 |
| Depth of field | EAN13(13 mil):30 ~ 240 mm; Code 39(5 mil):50 ~ 100 mm; Code 128(10 mil):30 ~ 240 mm; Data Matrix(10 mil):40 ~ 130 mm; QR Code(15 mil):15 ~ 205 mm |
| Field of view | Horizontal 42°, Vertical 32° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, USB(HID/CDC) |
| Data interface | USB2.0 |
| Power supply | 5 VDC |
| Max. power consumption | 2.5 W@5 VDC |
| Focal length | 3.1 mm |
| Lens mount | M5.0-Mount |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | White LED |
| Aiming system | Orange LED |
| Prompt | LED indicator, Buzzer |
| Dimension | 66.5 mm × 94 mm × 169.5 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the IDH2000 Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDH2000B/13NR/05WN/UC | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000B/CBASE/U | Price on request | 4 in stock | View | |
| MV-IDH2000RF/03SR/03WN | 0.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/03SR/03WN/UC | 0.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000RF/13SR/05WN | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/13SR/05WN/UC | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/13NR/05WN | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000RF/13NR/05WN/UC | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH2000P/13SR/05RN/U | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000P/13NR/05RN/U | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000PB/13SR/05RN/UC | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000PB/13NR/05RN | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000PB/13NR/05RN/UC | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000RF/CBASE/U | Price on request | 3 in stock | View | |
| MV-IDH2000/13SR/04WN/U | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000RF/H/13SR/05WN | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH2000/H/03SR/03WN/U | 0.3 MP | Price on request | 5 in stock | View |
| MV-IDH2000RF/H/03SR/03WN | 0.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000/H/13SR/05WN/U | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000PB/13SR/05RN | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2068B-AI | 1.3 MP | Price on request | 4 in stock | View |
| MV-IDH2000/13SR/05WN/U | 1.3 MP | Price on request | 5 in stock | View |
| MV-ORH330-RF/UC | 0.3 MP | Price on request | 3 in stock | View |
| MV-ORH330-RF/CBASE/U | 0.3 MP | Price on request | 3 in stock | View |
See all 34 models in the IDH2000 Series Handheld Code Reader series
