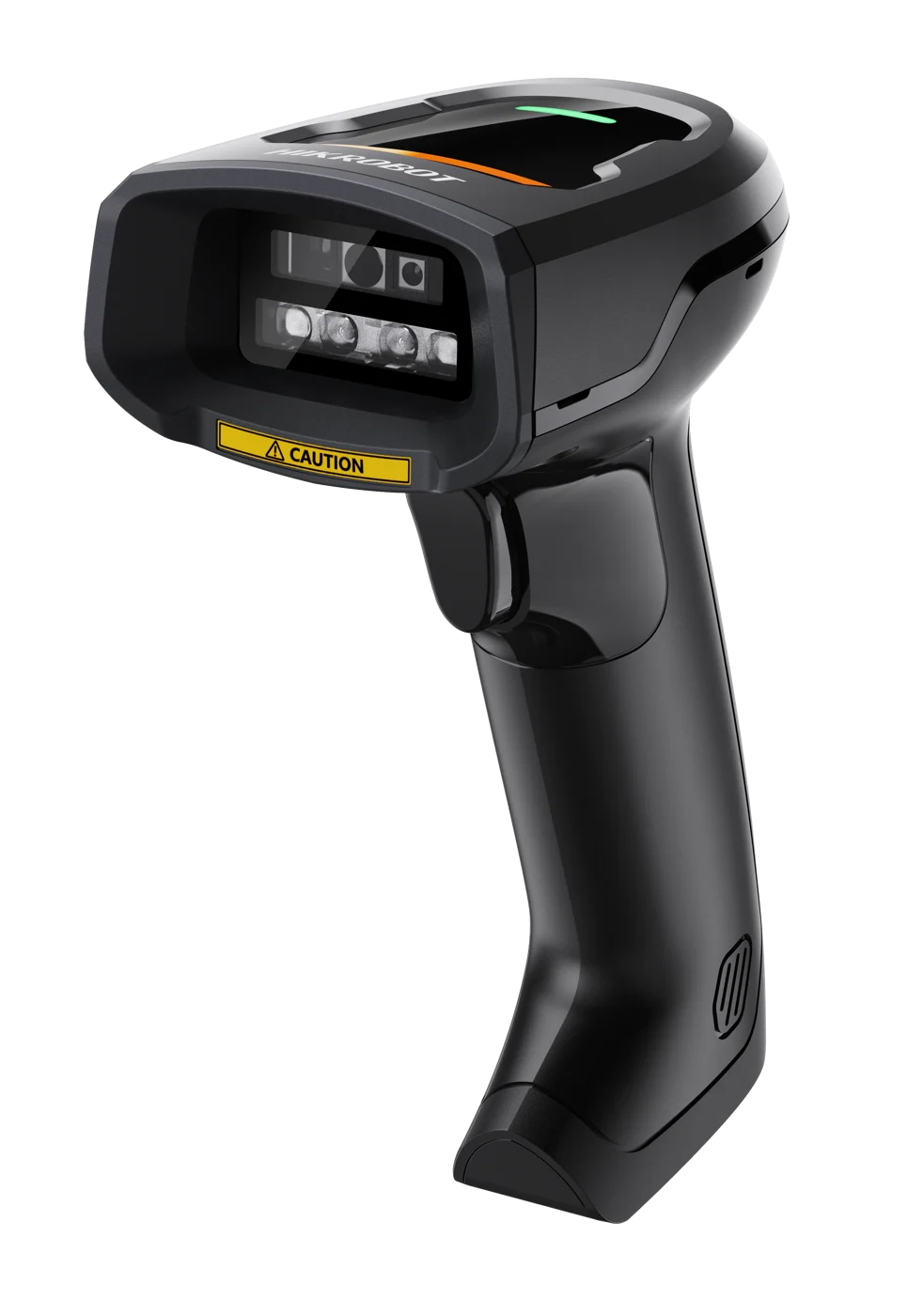

Hikrobot MV-IDH2000PB/13SR/05RN/UC Industrial wireless handheld code reader package
Model MV-IDH2000PB/13SR/05RN/UC
Hikrobot MV-IDH2000PB/13SR/05RN/UC Industrial wireless handheld code reader package. Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.
Datasheet (PDF) - MV-IDH2000PB/13SR/05RN/UCUser manual (PDF) - MV-IDH2000PB/13SR/05RN/UCCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH2000PB/13SR/05RN/UC
Features
- Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports switching to white light, red light, or blue light, and supports polling of two-color or three-color light source, providing greater scene adaptability and enhanced code reading performance.
- Adopts Bluetooth 5.0 wireless technology, and supports stable connection with max. transmission distance of 80 meters in open areas for more efficient operation.
- Adopts 2700 mAh battery with long standby time.
- IP42 and drop height of 1.8 m (50 times).
Specifications
| Model | MV-IDH2000PB/13SR/05RN/UC |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417; GSI code: GS1-128, GS1-QR, GS1-Data Matrix |
| Min. accuracy | 1D codes: 3 mil; 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 70 mm to 155 mm; Code 128 (10 mil): 30 mm to 430 mm; QR Code (10 mil): 45 mm to 230 mm; QR Code (15 mil): 20 mm to 350 mm; QR Code (20 mil): 20 mm to 450 mm |
| Detection angle | Tilt angle ± 65°, skew angle ± 65°, rotation angle 360° |
| Field of view | Horizontal 39°, vertical 29° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth wireless module, supports Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, Bluetooth, USB (HID/CDC) |
| Data interface | USB 2.0 (Type B) |
| Battery | 2700 mAh |
| Charging time | 6 h |
| Endurance | 10 h (interval scanning, once in 2 seconds) |
| Power supply | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED, red LED, blue LED, and supports polling of two-color or three-color light source. |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 96.9 mm × 170.2 mm (2.6" × 3.8" × 6.7") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | 1.8 m, 50 times |
| Laser safety class | Laser 1 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 0.39 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Data interface (smart base) | USB 2.0 (Type B), USB 2.0 (Type A) |
| Power supply (smart base) | 5 VDC |
| Current consumption (smart base) | 1.5 A (max.), 0.01 A (during standby) |
| Dimension (smart base) | 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Weight (smart base) | Approx. 120 g (0.3 lb.) |
| Ingress protection (smart base) | IP40 |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity (smart base) | 5% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.32 kg |
