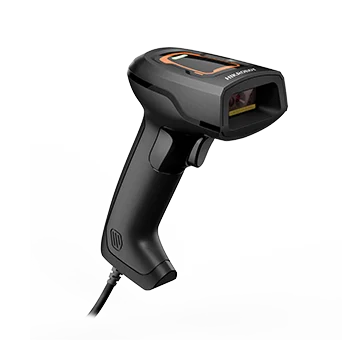

Hikrobot MV-IDH2000/13SR/04WN/U Light-industrial handheld code reader
Model MV-IDH2000/13SR/04WN/U
Hikrobot MV-IDH2000/13SR/04WN/U Light-industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail Robust algorithm handles dirty, damaged and low-contrast codes
Datasheet (PDF, Chinese) - MV-IDH2000/13SR/04WN/UUser manual (PDF, Chinese) - MV-IDH2000/13SR/04WN/UCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH2000/13SR/04WN/U
Features
- In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
- Robust algorithm handles dirty, damaged and low-contrast codes
- USB-HID, USB-CDC and RS-232 output modes
- Detachable cable design for easy replacement
- IP42 protection and 1.8 m drop resistance
- Beeper and indicator status feedback
Specifications
| Model | MV-IDH2000/13SR/04WN/U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
| Min. accuracy | 1D code: 4 mil; 2D code: 5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 39(5 mil):45 mm ~ 175 mm; Code 128(10 mil):10 mm ~ 415 mm; QR Code(10 mil):35 mm ~ 220 mm; QR Code(15 mil):10 mm ~ 350 mm; QR Code(20 mil):10 mm ~ 415 mm |
| Field of view | 47° (H) × 39° (V) |
| Detection angle | Horizontal 39°, vertical 29° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, USB(HID/CDC), Serial (RS-232) |
| Data interface | USB2.0, USB3.0, RS-232 |
| Power supply | 5 VDC |
| Current consumption | 0.9 A (max. current); 0.5 A (typical current) |
| Focal length | 3.9 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | White LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 94 mm × 169.5 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Drop: 1.8 m, 50 times; Tumble: 0.5 m, 1000 times |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
