Handheld code readers

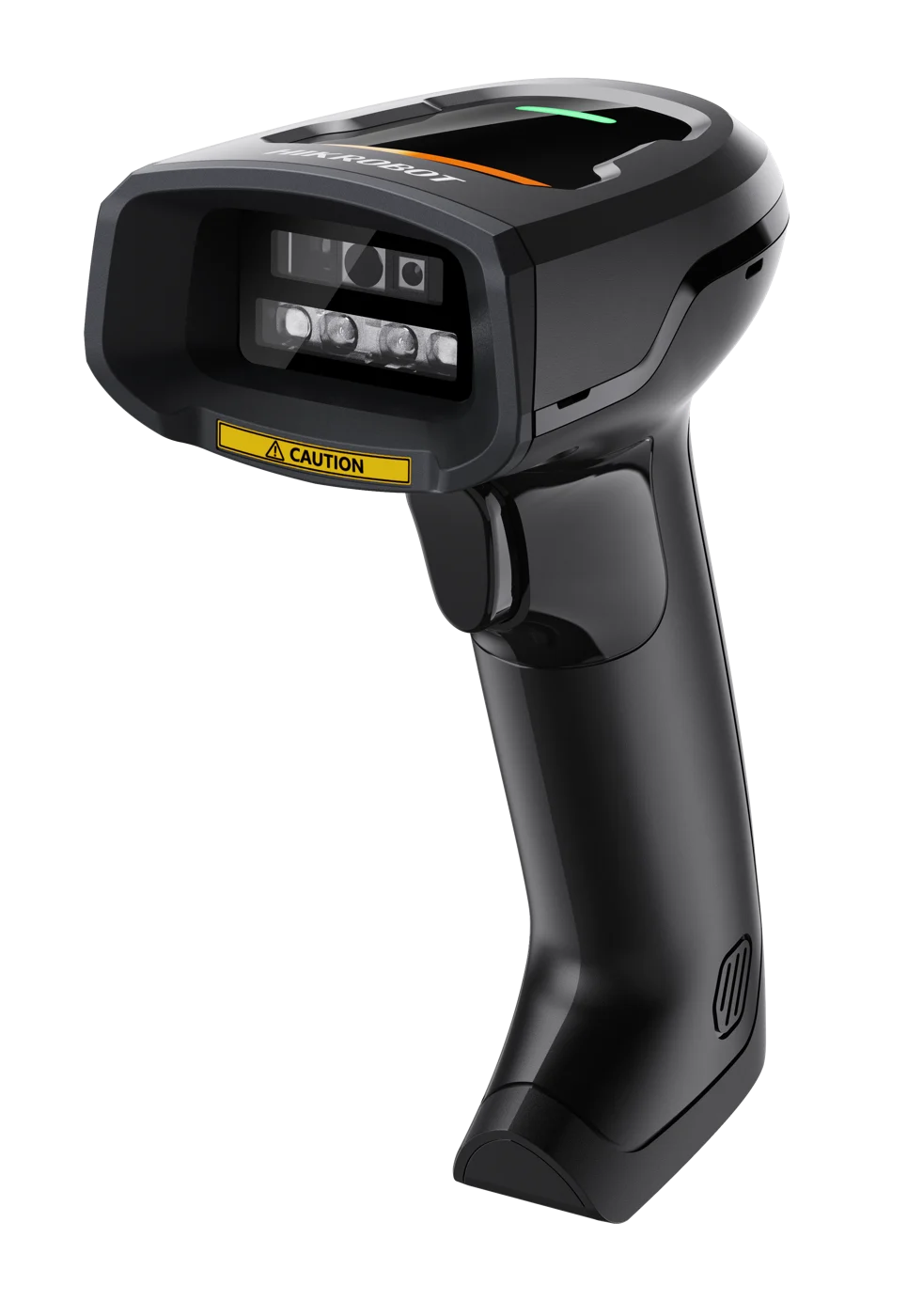

Hikrobot MV-IDH2000PB/13SR/05RN Industial Wireless Handheld Code Reader
Model MV-IDH2000PB/13SR/05RN
Hikrobot MV-IDH2000PB/13SR/05RN Industial Wireless Handheld Code Reader. In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail Robust algorithm reliably reads difficult codes: dirty, damaged, laminated, under-inked and low-contrast
Datasheet (PDF, Chinese) - MV-IDH2000PB/13SR/05RNUser manual (PDF, Chinese) - MV-IDH2000PB/13SR/05RNCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH2000PB/13SR/05RN
Features
- In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
- Robust algorithm reliably reads difficult codes: dirty, damaged, laminated, under-inked and low-contrast
- Light switchable between white, red and blue, with smart dual- and tri-color cycling for more applications
- Bluetooth 5.0 wireless: stable connection up to 80 m in open space, free of cables; connects to phones, tablets and other mobile devices for easier operation
- Rugged, with IP42 protection; withstands drops (1.8 m, 50 times)
- 2700 mAh battery for long standby time
Specifications
| Model | MV-IDH2000PB/13SR/05RN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin; Stacked code: PDF417; GSI code: GS1-128, GS1-QR, GS1-Data Matrix |
| Min. accuracy | 1D codes: 3 mil; 2D codes: 5 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128(3 mil):70 mm ~ 155 mm; Code 128(10 mil):30 mm ~ 430 mm; QR Code(10 mil):45 mm ~ 230 mm; QR Code(15 mil):20 mm ~ 350 mm; QR Code(20 mil):20 mm ~ 450 mm |
| Field of view | 39° (H) × 29° (V) |
| Detection angle | Horizontal 39°, vertical 29° |
| Symbol contrast | 20 % |
| Communication mode | Bluetooth wireless module, supports Bluetooth BT 5.1, BLE |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, Bluetooth, USB(HID/CDC) |
| Data interface | USB 2.0 (Type B) |
| Battery | 2700mAh |
| Charging time | 6 h |
| Endurance | 10 h (interval scanning, once in 2 seconds) |
| Power supply | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | White LED, red LED, blue LED, and supports polling of two-color or three-color light source. |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 66.5 mm × 96.9 mm × 170.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | 1.8 m, 50 times |
| Laser safety class | Laser 1 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 0.39 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Data interface (smart base) | USB 2.0 (Type B), USB 2.0 (Type A) |
| Power supply (smart base) | 5 VDC |
| Current consumption (smart base) | 1.5 A (max.), 0.01 A (during standby) |
| Dimension (smart base) | 82.6 mm × 121.8 mm × 76.1 mm |
| Weight (smart base) | Approx. 120 g (0.3 lb.) |
| Ingress protection (smart base) | IP40 |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity (smart base) | 5% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.32 kg |
