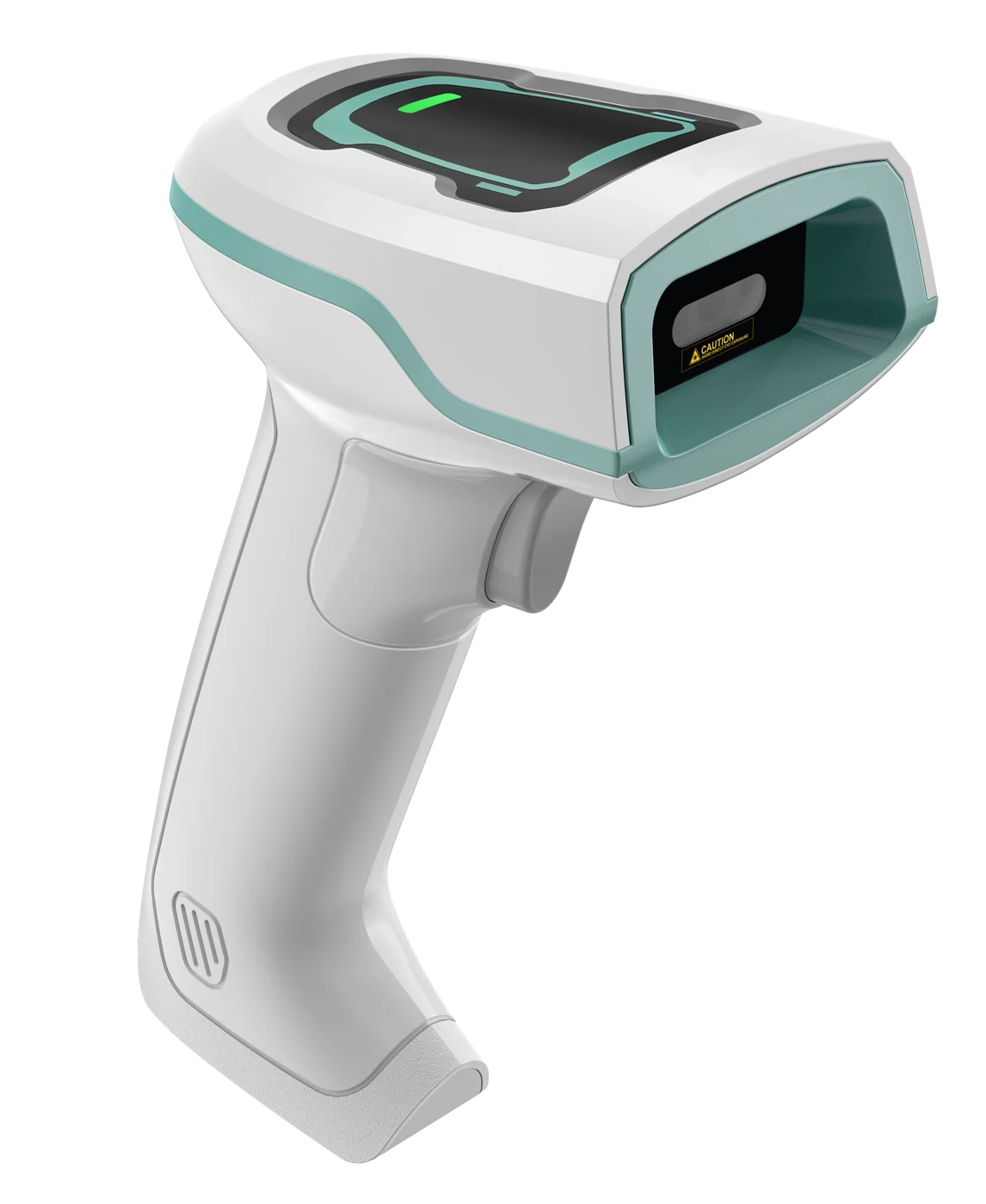

Hikrobot MV-IDH2000RF/H/03SR/03WN Medical RF wireless handheld code reader
Model MV-IDH2000RF/H/03SR/03WN
Hikrobot MV-IDH2000RF/H/03SR/03WN Medical RF wireless handheld code reader. Medical-grade antibacterial, alcohol-resistant material In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
Datasheet (PDF, Chinese) - MV-IDH2000RF/H/03SR/03WNUser manual (PDF, Chinese) - MV-IDH2000RF/H/03SR/03WNCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH2000RF/H/03SR/03WN
Features
- Medical-grade antibacterial, alcohol-resistant material
- In-house high-performance barcode algorithm efficiently reads difficult inkjet-printed codes in light industry, enterprise and retail
- Robust algorithm handles dirty, damaged, laminated, under-inked and low-contrast codes
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- 2.4G wireless communication with stable, reliable signal
- 2750 mAh battery for long standby time
- IP42 protection and 1.8 m drop resistance
Specifications
| Model | MV-IDH2000RF/H/03SR/03WN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
| Min. accuracy | 4 mil |
| Sensor type | CMOS |
| Resolution | 640 × 480 |
| Depth of field | EAN13(13 mil):30 ~ 240 mm; Code 39(5 mil):50 ~ 100 mm; Code 128(10 mil):30 ~ 240 mm; Data Matrix(10 mil):40 ~ 130 mm; QR Code(15 mil):15 ~ 205 mm |
| Field of view | 42° (H) × 32° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication mode | 2.4G |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, USB, 2.4G |
| Data interface | USB 2.0 (Type B) |
| Battery | 2700mAh |
| Charging time | 6h |
| Endurance | 12 h (one scan every, 2 s) |
| Power supply | 5 VDC |
| Current consumption | 1.5 A (max.), 0.14 A (during standby) |
| Focal length | 3.1 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | White LED |
| Aiming system | Orange LED |
| Prompt | LED indicator, buzzer, vibrator |
| Ingress protection | IP42 |
| Dimension | 66.5 mm × 94 mm × 169.5 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | 1.8 m |
| Laser safety class | Laser 2 |
| Wavelength | 650nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Data interface (smart base) | USB 2.0 (Type B), USB 2.0 (Type A) |
| Power supply (smart base) | 5 VDC |
| Current consumption (smart base) | 1.5 A (max.), 0.01 A (during standby) |
| Dimension (smart base) | 82.6 mm × 121.8 mm × 76.1 mm |
| Weight (smart base) | Approx. 120 g (0.3 lb.) |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity (smart base) | 5% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.32 kg |
