Hikrobot MV-IDH9000B/13HHD/16RP/LS Micro-code DPM ultra-rugged wireless handheld code reader GigE kit
Model MV-IDH9000B/13HHD/16RP/LS

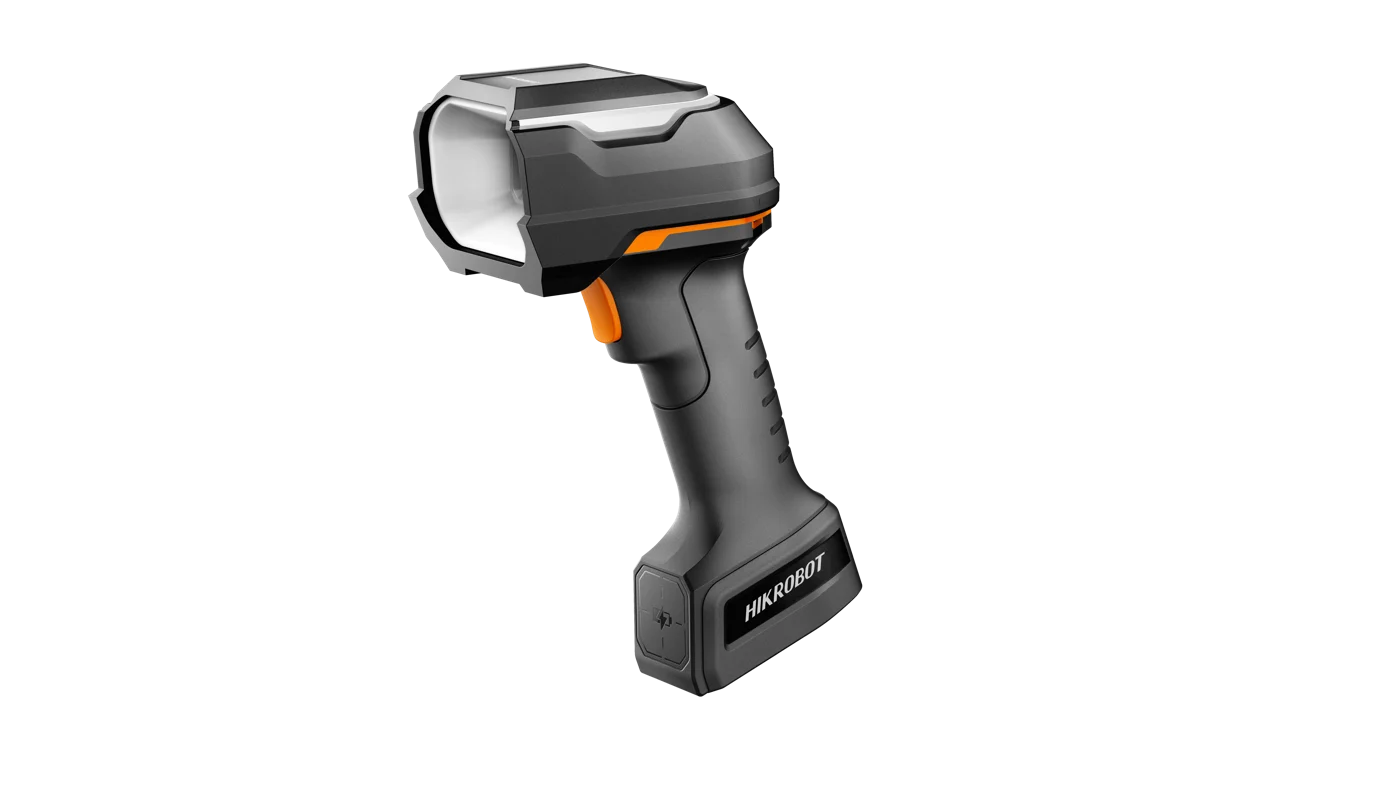

Hikrobot MV-IDH9000B/13HHD/16RP/LS Micro-code DPM ultra-rugged wireless handheld code reader GigE kit. Advanced decoding algorithm with a dedicated code-reading illumination system: easily reads damaged, skewed, low-contrast and laser-etched metal codes Micro-code DPM model pairs dual cameras with a micro-code lens and a zoom lens: the micro-code lens reads codes with modules as small as 0.04 mm, the zoom lens enables high-speed reading over a large depth of field
Datasheet (PDF, Chinese) - MV-IDH9000B/13HHD/16RP/LSUser manual (PDF, Chinese) - MV-IDH9000B/13HHD/16RP/LSCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH9000B/13HHD/16RP/LS
Features
- Advanced decoding algorithm with a dedicated code-reading illumination system: easily reads damaged, skewed, low-contrast and laser-etched metal codes
- Micro-code DPM model pairs dual cameras with a micro-code lens and a zoom lens: the micro-code lens reads codes with modules as small as 0.04 mm, the zoom lens enables high-speed reading over a large depth of field
- High-performance DPM code reader with zoom-lens technology: efficiently handles damaged, skewed, low-contrast and laser-etched metal codes for stable, accurate decoding
- Bluetooth 5.0 wireless: stable connection up to 100 m in open space, free of cables; connects directly to phones, tablets and other mobile devices for easier operation
- 4650 mAh high-capacity battery for long runtime
- Wireless charging prevents contact wear and interference from metal debris
- 4 integrated lighting modes (direct, polarized, diffuse and dual-side diffuse) for resin, reflective and cast surfaces, cylinders and other typical applications
- Rugged: withstands drops (2.5 m, 50 times) and tumbles (0.5 m, 20000 times), and resists gasoline, diesel and other chemicals as well as strong electrostatic discharge
- OLED display: view device and code information and configure parameters without a PC
Specifications
| Model | MV-IDH9000B/13HHD/16RP/LS |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE, etc.; Matrix 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked 2D code: PDF417 |
| Min. accuracy | 1.57 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024, 1280 × 1024 |
| Depth of field | Code128(3 mil):0 mm ~ 100 mm; Code 128(10 mil):0 mm ~ 250 mm; Code 128(20 mil):0 mm ~ 350 mm; Code 39(5 mil):0 mm ~ 150 mm; Data Matrix(5 mil):5 mm ~ 79 mm; QR Code(20 mil):0 mm ~ 250 mm |
| Field of view | Wide-angle lens: horizontal 43.6°, vertical 35.5°; Telephoto lens: horizontal 10.4°, vertical 8.3° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Wireless range | 100 m (open environment) |
| Communication mode | Bluetooth BT 5.0, BLE |
| Charging time | Powered off (0% to 100%): DC 12 V (12V, 2A):6 h; PoE charging: 6 h; Type-C charging: 6 h; Powered off (7% to 80%): DC 12 V (12V, 2A):3 h; PoE charging: 3 h |
| Endurance | 14 h (one scan every, 20 s) |
| Battery | 4650 mAh |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED); Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Aiming system | 650 nm laser (red light) + LED (green light) |
| Ingress protection | IP67 |
| Prompt | LED indicator, buzzer, vibrator |
| Display | 0.96" OLED display |
| Dimension | 74 mm × 109.9 mm × 227.1 mm |
| Weight | Approx. 580 g |
| Temperature | Operating temp.: -10 to 50 °C, Storage temp.: -20 to 60 °C, Battery charging temperature 0 to 40°C |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Drop: 2.5 m, 50 times; Tumble: 0.5 m, 20000 times |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Laser safety class | Laser 1 |
| Wavelength | 650 nm |
| Pulse width | 6.6 ms |
| Maximum power | 0.39 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Data interface | Fast Ethernet(100 Mbit/s)2, RS-232, DC terminal |
| Current consumption | USB: 1.1 A (max current); 0.15 A (standby current); Ethernet: DC terminal: 1.1 A (max current); 0.15 A (standby current); PoE: 0.35 A (max. current); 0.1 A (standby current); DC terminal: 1.1 A (max. current); 0.15 A (standby current); PoE: 0.35 A (max. current); 0.1 A (standby current) |
| Dimension (smart base) | 248.4 mm × 106.3mm × 69.4 mm |
| Weight (smart base) | Approx. 380 g |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity (smart base) | 5% RH to 95% RH (no condensation) |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC |
| Power supply | DC terminal: 12 to 24 VDC; PoE:48 VDC |
| Charging time (smart base) | 6 h |
| Shipping weight (estimated) | 0.91 kg |
