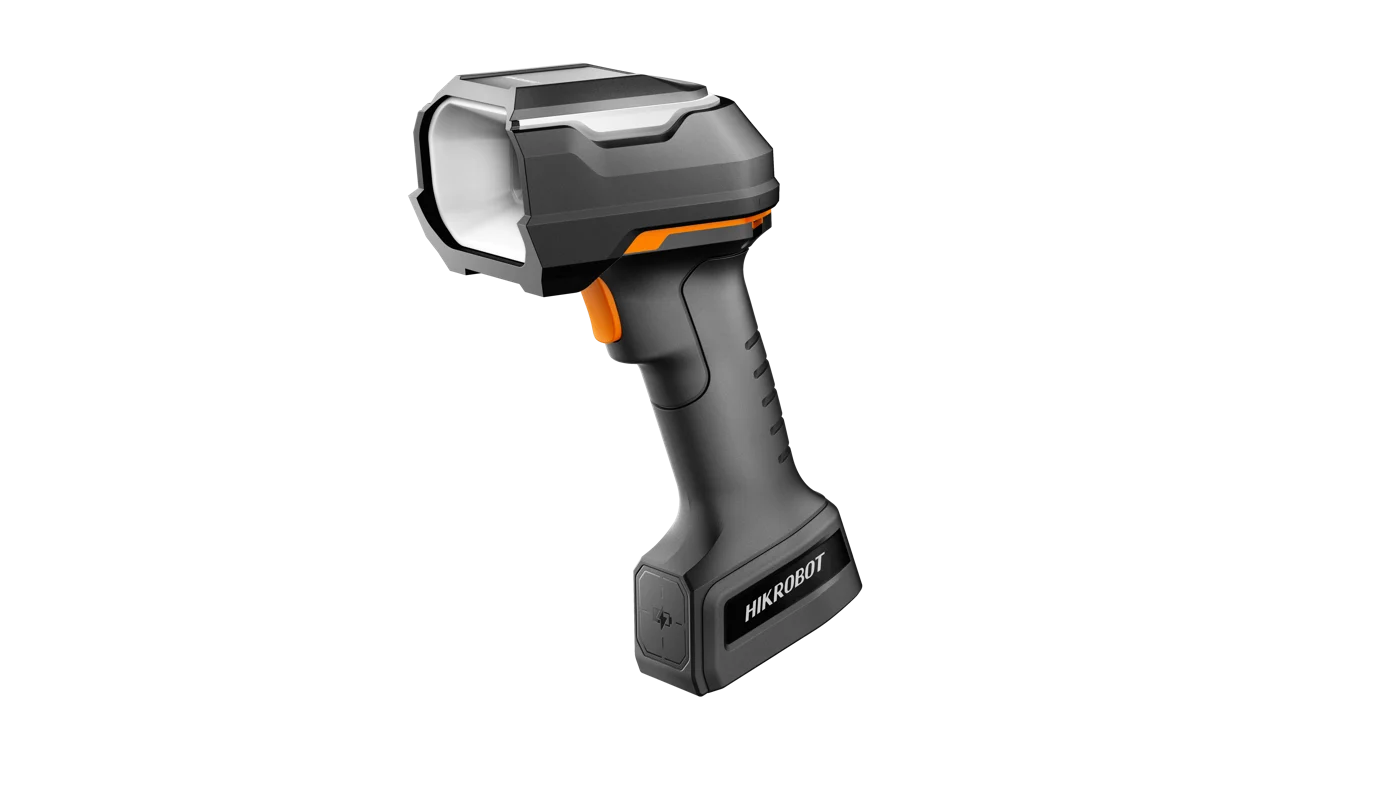

Hikrobot HIK-XD90B-DL66-HD Ultra-rugged wireless handheld code reader
Model HIK-XD90B-DL66-HD
Hikrobot HIK-XD90B-DL66-HD Ultra-rugged wireless handheld code reader. Advanced decoding algorithm with a dedicated code-reading illumination system: easily reads damaged, skewed, low-contrast and laser-etched metal codes Micro-code DPM model pairs dual cameras with a micro-code lens and a zoom lens: the micro-code lens reads codes with modules as small as 0.04 mm, the zoom lens enables high-speed reading over a large depth of field
Features
- Advanced decoding algorithm with a dedicated code-reading illumination system: easily reads damaged, skewed, low-contrast and laser-etched metal codes
- Micro-code DPM model pairs dual cameras with a micro-code lens and a zoom lens: the micro-code lens reads codes with modules as small as 0.04 mm, the zoom lens enables high-speed reading over a large depth of field
- High-performance DPM code reader with zoom-lens technology: efficiently handles damaged, skewed, low-contrast and laser-etched metal codes for stable, accurate decoding
- Bluetooth 5.0 wireless: stable connection up to 100 m in open space, free of cables; connects directly to phones, tablets and other mobile devices for easier operation
- 4650 mAh high-capacity battery for long runtime
- Wireless charging prevents contact wear and interference from metal debris
- 4 integrated lighting modes (direct, polarized, diffuse and dual-side diffuse) for resin, reflective and cast surfaces, cylinders and other typical applications
Specifications
| Model | HIK-XD90B-DL66-HD |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE, etc.; Matrix 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked 2D code: PDF417 |
| Min. accuracy | 1.57 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024, 1280 × 1024 |
| Depth of field | Code128 (3 mil): 0 mm ~ 100 mm; Code 128 (10 mil): 0 mm ~ 250 mm; Code 128 (20 mil): 0 mm ~ 350 mm; Code 39 (5 mil): 0 mm ~ 150 mm; Data Matrix (5 mil): 5 mm ~ 79 mm; QR Code (20 mil): 0 mm ~ 250 mm |
| Field of view | Short-focus lens: 43.6° (H) × 35.5° (V); Long-focus lens: 10.4° (H) × 8.3° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open environment) |
| Battery | 4650 mAh |
| Charging time | Powered off (0 % ~ 100%): DC12 V (12V, 2 A): 6 h; PoE charging: 6 h; Type-C charging: 6 h; Powered off (7% ~ 80%): DC12 V (12V, 2 A): 3 h; PoE charging: 3 h |
| Endurance | 14 h (one scan every, 20 s) |
| Max. current | 1.5 A |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | 4 light types supported: diffuse light (red), dual side light (red), direct light (white), polarized light (white); Default: Smart code reading mode, Automatic polling of all lights based on the code reading scene |
| Aiming system | 650 nm laser (red light) + LED (green light) |
| Prompt | LED indicator, buzzer, vibrator |
| Display | 0.96" OLED display |
| Dimension | 74 mm × 109.9 mm × 227.1 mm |
| Weight | Approx. 580 g |
| Ingress protection | IP67 |
| Temperature | Operating temp.: -10 to 50 °C, Storage temp.: -20 to 60 °C, Battery charging temperature 0 to 40°C |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Drop: 2.5 m, 50 times; Tumble: 0.5 m, 20000 times |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Laser safety class | Laser 1 |
| Wavelength | 650 nm |
| Pulse width | 6.6 ms |
| Maximum power | 0.39 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Communication protocol | SmartSDK, USB (HID/CDC), Bluetooth, Serial1 |
| Data interface | USB 2.0, DC terminal |
| Power supply | DC terminal: 12 to 24 VDC |
| Current consumption | 1.1 A (max. current); 0.15 A (standby current) |
| Charging time (smart base) | 6 h |
| Dimension (smart base) | 257.9 mm × 99 mm ×67.6 mm |
| Weight (smart base) | Approx. 380 g |
| Ingress protection (smart base) | IP65 |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity (smart base) | 5% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.91 kg |
