Handheld code readers

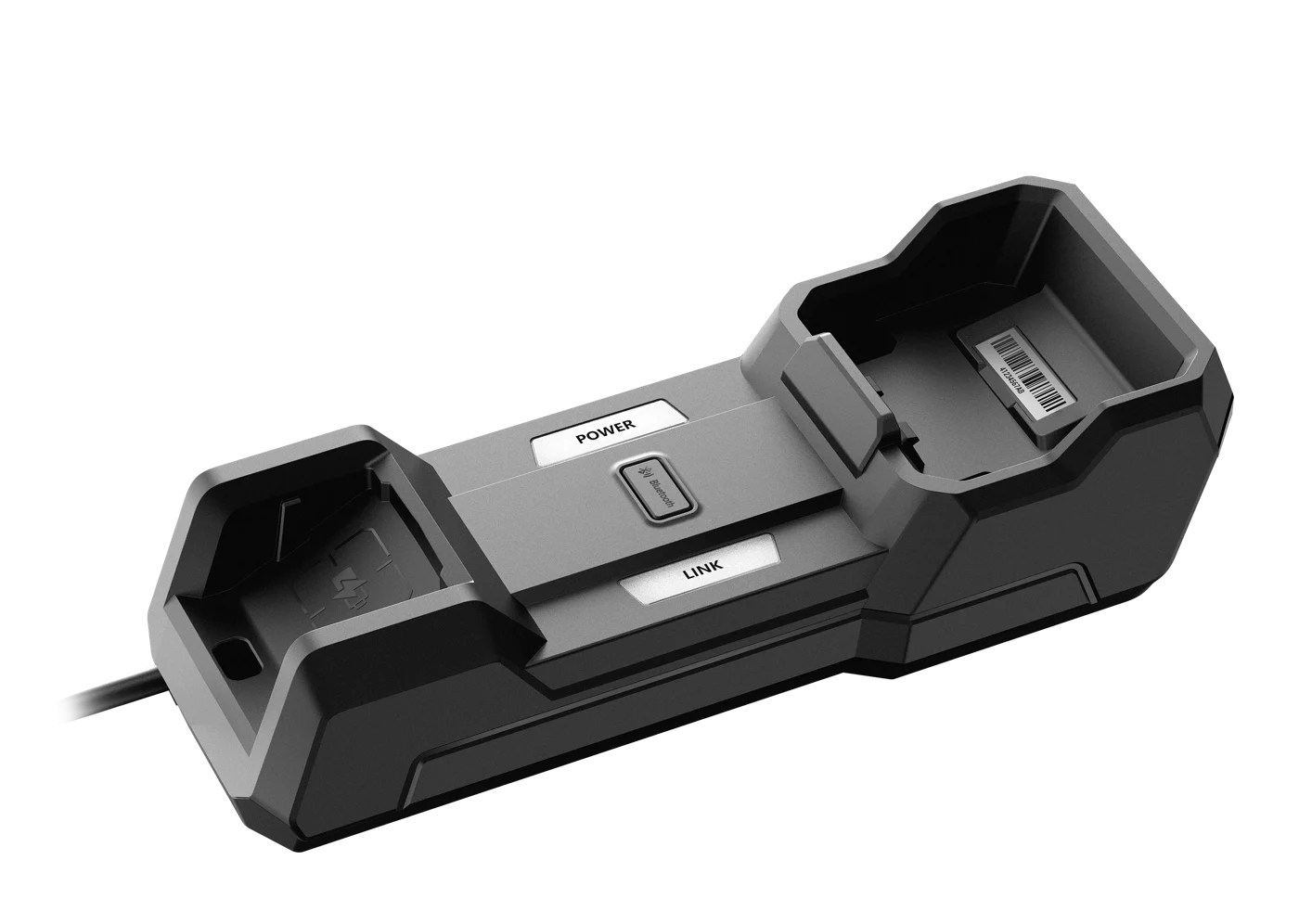

Hikrobot MV-IDH9000B/SBASE/U USB Smart Base
Model MV-IDH9000B/SBASE/U
Hikrobot MV-IDH9000B/SBASE/U USB Smart Base. Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations. Supports wireless charging, preventing potential metal electrode wear and metal filing interference.
Datasheet (PDF) - MV-IDH9000B/SBASE/UUser manual (PDF) - MV-IDH9000B/SBASE/UCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH9000B/SBASE/U
Features
- Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
- Supports wireless charging, preventing potential metal electrode wear and metal filing interference.
- Supports multiple charging methods, such as charging via smart base, Type-C connector, or PoE connection with smart base.
- The communication protocols supported by the USB type device are SmartSDK, USB, Serial, and Bluetooth. The communication protocols supported by the network type device are SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP, Bluetooth, and Modbus.
Specifications
| Model | MV-IDH9000B/SBASE/U |
|---|---|
| Brand | Hikrobot |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open area) |
| Communication protocol | SmartSDK, USB (HID/CDC), Bluetooth, Serial1 |
| Data interface | USB 2.0, DC terminal |
| Power supply | DC terminal: 12 VDC to 24 VDC |
| Current consumption | 1.1 A (max.), 0.15 A (during standby) |
| Charging time | 6 h |
| Dimension | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 0.63 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the IDH9000 Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDH9000/13DP/04RP/L | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH9000/13DP/04RP/U | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH9000/13HHD/16RP/L | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH9000/13HHD/16RP/U | 1.3 MP | Price on request | 5 in stock | View |
| MV-IDH9000B/13DP/04RP/LS | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH9000B/13DP/04RP/US | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH9000B/13HHD/16RP | 1.3 MP | Price on request | 3 in stock | View |
| MV-IDH9000B/13HHD/16RP/US | 1.3 MP | Price on request | 2 in stock | View |
| MV-IDH9000B/SBASE/L | Price on request | 5 in stock | View |
