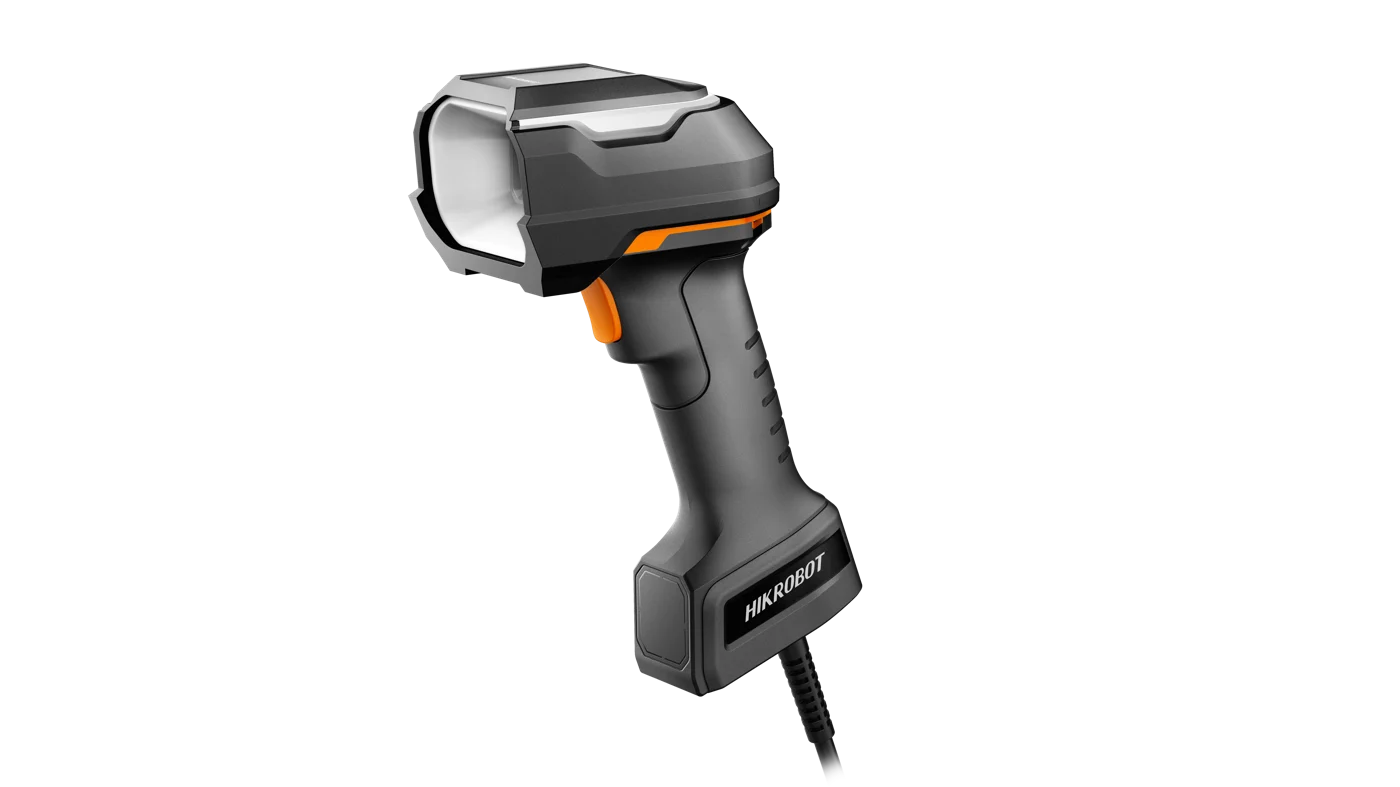

Hikrobot MV-IDH9000/13DP/04RP/U Ultra-ragged Wired Handheld Code Reader
Model MV-IDH9000/13DP/04RP/U
Hikrobot MV-IDH9000/13DP/04RP/U Ultra-ragged Wired Handheld Code Reader. Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio. The device which supports ultra-small code and DPM code recognition has a lens for reading ultra-small code with a minimum module size of 0.04 mm and a zoom lens for high-speed reading with large depth of field.
Datasheet (PDF) - MV-IDH9000/13DP/04RP/UUser manual (PDF) - MV-IDH9000/13DP/04RP/UCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH9000/13DP/04RP/U
Features
- Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio.
- The device which supports ultra-small code and DPM code recognition has a lens for reading ultra-small code with a minimum module size of 0.04 mm and a zoom lens for high-speed reading with large depth of field.
- Adopts 4 lighting modes for different scenes, such as direct lighting, polarized lighting, diffused reflection lighting, and bi-directional lighting.
- Sturdy and durable, resistance to falling (2.5 m, 50 times) and rolling (0.5 m, 20000 times), and also resistance to chemical corrosion and strong static electricity interference.
- Adopts OLED display for quick viewing of the device and code information.
- Supports smart tune and quick configuration of code parameters.
- Supports communication protocols, including TCP, FTP, UDP, USB, Profinet, Ethernet/IP, ModBus, Serial, SmartSDK, etc.
Specifications
| Model | MV-IDH9000/13DP/04RP/U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec; Stacked barcode: PDF417 |
| Min. accuracy | 3 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code128 (3 mil): 0 mm to 100 mm1; Code 128 (10 mil): 0 mm to 250 mm1; Code 128 (20 mil): 0 mm to 350 mm1; Code 39 (5 mil): 0 mm to 150 mm1; Data Matrix (5 mil): 5 mm to 75 mm; QR Code (20 mil): 0 mm to 250 mm1 |
| Field of view | Horizontal 43.6°, vertical 35.5° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication protocol | SmartSDK, USB (HID/CDC), Serial2 |
| Data interface | USB 2.0, DC terminal |
| Power supply | 12 VDC |
| Current consumption | 0.7 A (max.), 0.47 A (typical) |
| Focal length | 4.3 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED); Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Aiming system | 650 nm laser (red light) |
| Prompt | LED indicator, buzzer, vibrator |
| Display | 0.96" OLED display |
| Dimension | 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9") |
| Weight | Approx. 488 g (1.1 lb.) (without cable) |
| Ingress protection | IP67 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Dropping: 2.5 m, 50 times; Rolling: 0.5 m, 20000 times |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 6.6 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.78 kg |
