Handheld code readers

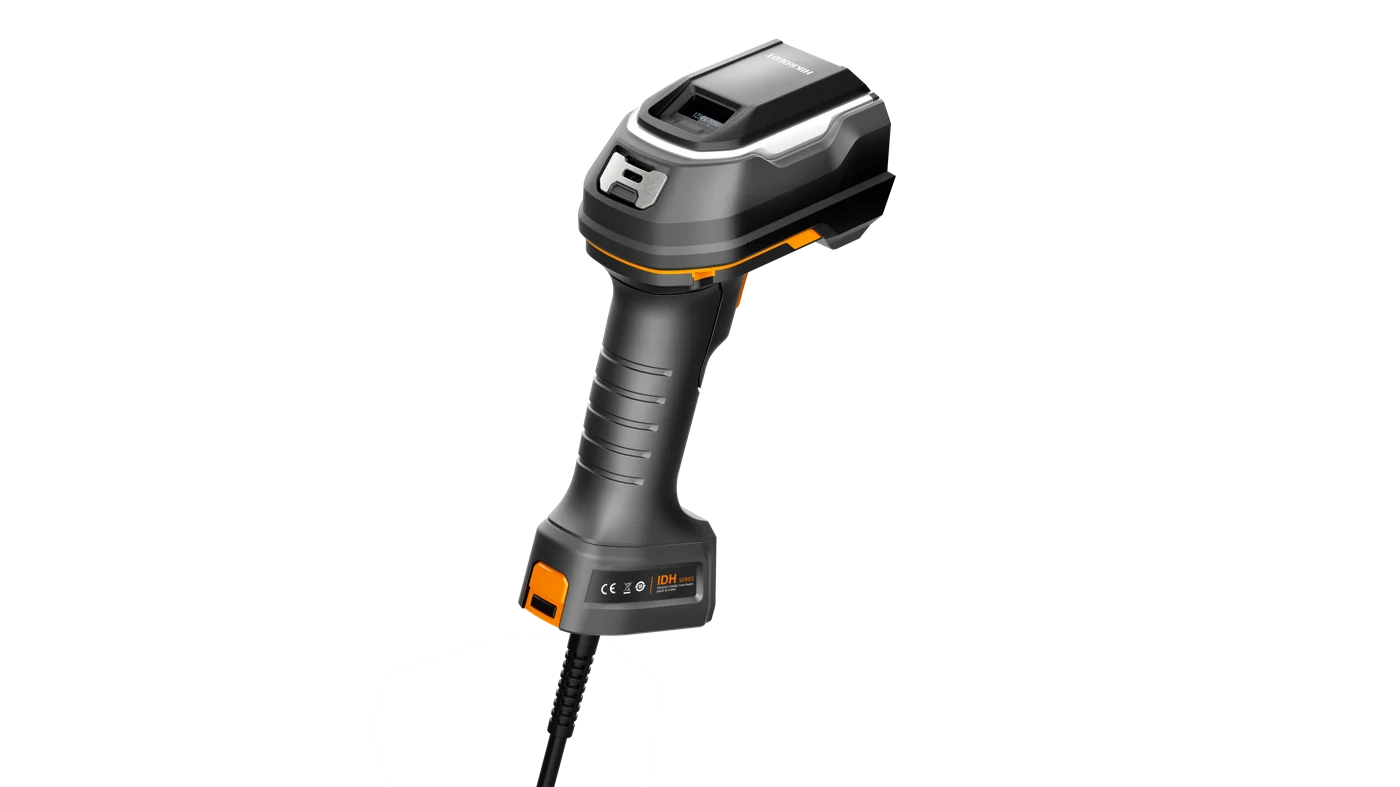

Hikrobot HIK-XD90-DL66-HD Ultra-durable industrial wired handheld code reader
Model HIK-XD90-DL66-HD
Hikrobot HIK-XD90-DL66-HD Ultra-durable industrial wired handheld code reader. Robust algorithm reliably reads difficult codes: damaged, skewed, low-contrast and laser-etched metal codes Micro-code lens reads codes with modules as small as 0.04 mm; zoom lens enables high-speed reading over a large depth of field
Features
- Robust algorithm reliably reads difficult codes: damaged, skewed, low-contrast and laser-etched metal codes
- Micro-code lens reads codes with modules as small as 0.04 mm; zoom lens enables high-speed reading over a large depth of field
- 4 integrated lighting modes (direct, polarized, diffuse and dual-side diffuse) for resin, reflective and cast surfaces, cylinders and other typical applications
- Rugged: withstands drops (2.5 m, 50 times) and tumbles (0.5 m, 20000 times), and resists gasoline, diesel and other chemicals as well as strong electrostatic discharge
- OLED display: view device and code information and configure parameters without a PC
- One-click tuning for quick configuration of code-reading parameters and modes
- Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK and other communication protocols
Specifications
| Model | HIK-XD90-DL66-HD |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec; Stacked code: PDF417 |
| Min. accuracy | 1.57 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code128 (3 mil): 0 mm ~ 100 mm¹; Code 128 (10 mil): 0 mm ~ 250 mm¹; Code 128 (20 mil): 0 mm ~ 350 mm¹; Code 39 (5 mil): 0 mm ~ 150 mm¹; Data Matrix (5 mil): 5 mm ~ 79 mm; QR Code (20 mil): 0 mm ~ 250 mm¹ |
| Field of view | Short-focus lens: 43.6° (H) × 35.5° (V); Long-focus lens: 10.4° (H) × 8.3° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, UDP, TCP Client, Serial, FTP, TCP Server, Profinet, EthernetIP, Modbus |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power supply | DC terminal: 12 VDC; PoE³: 48 V |
| Current consumption | DC terminal: 0.7 A (max. current); 0.47 A (typical current); PoE³: 0.2 A (max. current); 0.14 A (typical current) |
| Focal length | Short-focus lens: 4.3 mm; Long-focus lens: 16 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | 4 light types supported: diffuse light (red), Dual-side light (red), Direct light (white), Polarized light (white); Device defaults to Smart code reading mode, Automatic polling of all lights based on the code reading scene |
| Aiming system | 650 nm laser (red light) + LED (green light) |
| Prompt | LED indicator, buzzer, vibrator |
| Display | 0.96" OLED display |
| Dimension | 74 mm × 109.9 mm × 227.1 mm |
| Weight | Approx. 490 g (1.1 lb.) (without cable) |
| Ingress protection | IP67 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Drop height | Drop: 2.5 m, 50 drops; Tumble: 0.5 m, 20000 tumbles |
| Chemically resistant | ISO 16750 |
| Static electricity resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.79 kg |
