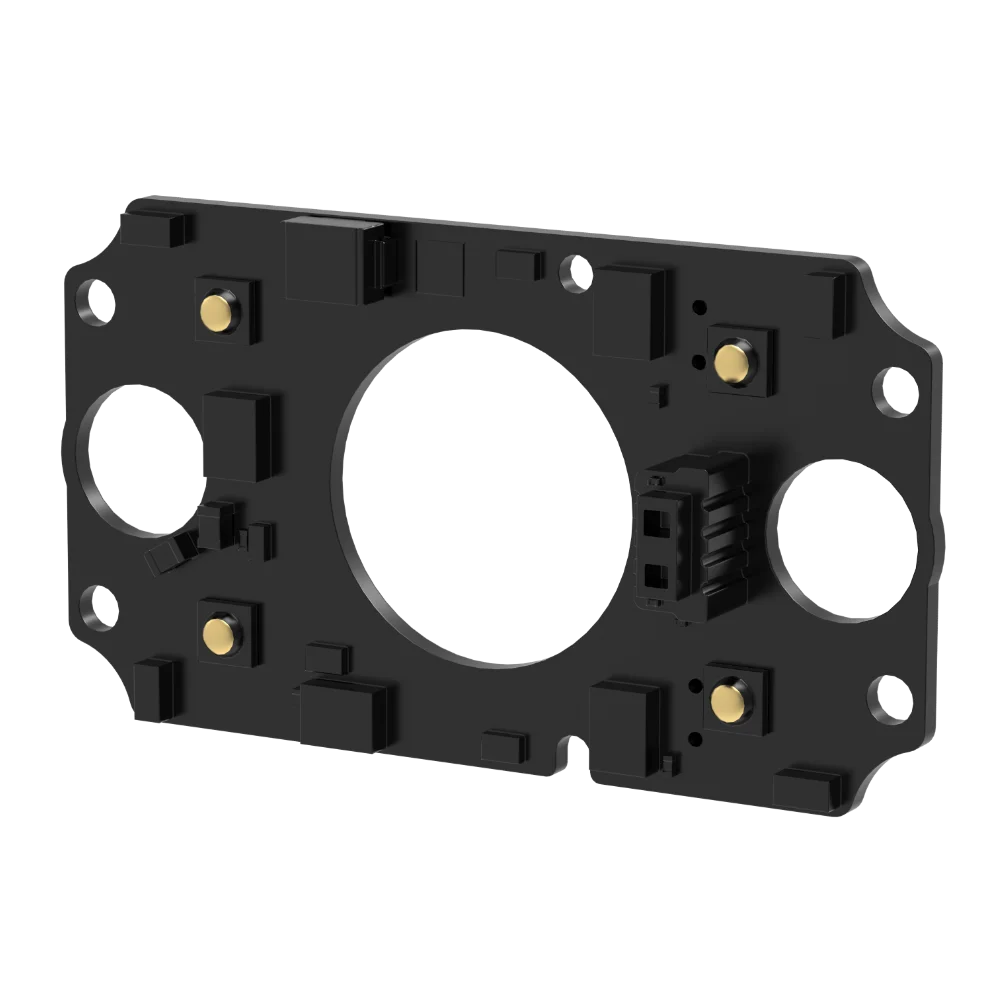

Hikrobot MV-IDA-L-4-46-25.5-B-TOF 2023XM series liquid-lens blue light board

Fixed code readers

Hikrobot MV-IDA-L-4-46-25.5-B-TOF 2023XM series liquid-lens blue light board

Model MV-IDA-L-4-46-25.5-B-TOF

Hikrobot MV-IDA-L-4-46-25.5-B-TOF 2023XM series liquid-lens blue light board. MV-IDA-L-4-46-25.5 4-LED light board with 4 independently controlled zones (upper left/upper right/lower left/lower right); choosing the right board for the site improves imaging for vision inspection

Price on request
0.52 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-IDA-L-4-46-25.5-B-TOF

Features

  • MV-IDA-L-4-46-25.5 4-LED light board with 4 independently controlled zones (upper left/upper right/lower left/lower right); choosing the right board for the site improves imaging for vision inspection

Specifications

ModelMV-IDA-L-4-46-25.5-B-TOF
BrandHikrobot
Light source typeBlue light, 4 LEDs
Light source wavelength464 ~ 476 nm
Color temperature-
Emission angle150°
Data interfaceBoard-to-board connector
Power supply24 VDC
Max. power consumption8W @24VDC
Dimension46 mm × 25.5 mm
Shipping weight (estimated)0.52 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the ID2000 Series Code Reader Accessories series

ModelSizePriceAvailability
MV-IDA-IO-22 Price on request 2 in stockView
MV-IDA-IO-33 Price on request 5 in stockView
MV-IDA-L-4-46-25.5-BR-TOF Price on request 3 in stockView
MV-IDA-L-4-46-25.5-R-TOF Price on request 2 in stockView
MV-IDA-L-4-46-25.5-IR-TOF Price on request 5 in stockView
MV-IDA-L-4-46-25.5-W-TOF Price on request 5 in stockView
MV-IDA-L-4-46-25.5-UV365-TOF Price on request 4 in stockView
MV-IDA-C-Y-51.5-31.5-ESD Price on request 5 in stockView
MV-IDA-C-N-43-25-DOME Price on request 2 in stockView
MV-MFW216M-06T-RBP1.4 MP, 6 mm lens Price on request 4 in stockView
MV-MFW216M-10T-RBP1.4 MP, 10 mm lens Price on request 5 in stockView
MV-MFW216M-16T-RBN1.4 MP, 16 mm lens Price on request 2 in stockView
MV-BX0106-06-HSR1.4 MP, 6.72 mm lens Price on request 2 in stockView
MV-BX0106-06-HSB1.4 MP, 6.72 mm lens Price on request 3 in stockView
MV-BX0106-06-HSW1.4 MP, 6.72 mm lens Price on request 4 in stockView
MV-BX0106-06-HSRP1.4 MP, 6.72 mm lens Price on request 4 in stockView
MV-BX0106-060-HSR1.4 MP, 6.72 mm lens Price on request 5 in stockView
MV-BX0106-060-HSB1.4 MP, 6.72 mm lens Price on request 3 in stockView
MV-BX0106-060-HSW1.4 MP, 6.72 mm lens Price on request 2 in stockView
MV-BX0106-060-HSRP1.4 MP, 6.72 mm lens Price on request 2 in stockView
CT-IDA01311.3 MP, 4.7 mm lens Price on request 4 in stockView
MV-HHB016-06S-R1.4 MP, 6.72 mm lens Price on request 4 in stockView
CY-A16M-06T-RBP1.4 MP, 6 mm lens Price on request 2 in stockView
MV-ZD2004M-06S-RBN0.4 MP, 6.72 mm lens Price on request 5 in stockView

See all 308 models in the ID2000 Series Code Reader Accessories series
