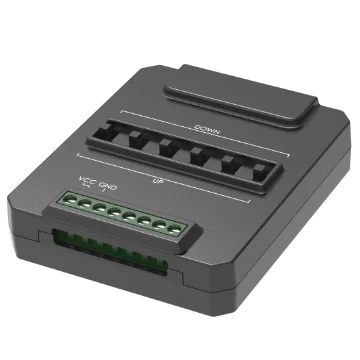

Hikrobot MV-IDA-IO-33 Gen 1 3-in 3-out IO box

Name: Hikrobot MV-IDA-IO-33 Gen 1 3-in 3-out IO box
Brand: Hikrobot
SKU: MV-IDA-IO-33

Model MV-IDA-IO-33

Hikrobot MV-IDA-IO-33 Gen 1 3-in 3-out IO box. I/O box for power and I/O connections to smart code readers or vision sensors; cameras can use its pull-up or pull-down resistors for fast I/O wiring

Datasheet (PDF, Chinese) - MV-IDA-IO-33 CAD: 3D STEP + 2D DXF (ZIP) - MV-IDA-IO-33

Features

I/O box for power and I/O connections to smart code readers or vision sensors; cameras can use its pull-up or pull-down resistors for fast I/O wiring

Specifications

Model	MV-IDA-IO-33
Brand	Hikrobot
Max. output current	24 mA
Pull-up voltage	Equal to VCC
Pull-down voltage	Equal to GND
Power supply	12 ~ 24 VDC
Dimension	63.7 mm × 54 mm × 16.6 mm
Weight	Approx. 30 g (0.07 lb.)
Shell material	ABS
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	0.14 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide
