Fixed code readers

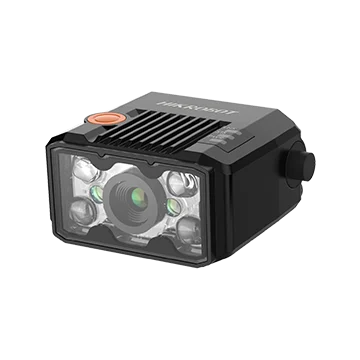

Hikrobot CY-A16M-06T-RBP 1.6 MP ultra-compact smart code reader
Model CY-A16M-06T-RBP
Hikrobot CY-A16M-06T-RBP 1.6 MP ultra-compact smart code reader. Solid-state high-speed focusing switches working distance quickly with high stability, ideal for mixed-product production lines Ultra-compact: fits all kinds of machines and tight workstations
Features
- Solid-state high-speed focusing switches working distance quickly with high stability, ideal for mixed-product production lines
- Ultra-compact: fits all kinds of machines and tight workstations
- Built-in LED aiming clearly marks the field of view for fast installation and setup
- Rich I/O interface and plug-in power connector for easy field wiring
- Supports TCP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
Specifications
| Model | CY-A16M-06T-RBP |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9” |
| Resolution | 1408 × 1024 |
| Exposure time | 16 μs ~ 2.5 sec |
| Gain | 0 ~ 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 1 non-isolated input (Line 2), 1 non-isolated output (Line 3), 2 bi-directional configurable non-isolated I/O (Line 0/1), 1× RS-232; Device trigger via side button supported |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 11 W@12 VDC |
| Focal length | 6 mm |
| Lens mount | M12-Mount |
| Working distance | 70 ~ 160 mm |
| Ambient illumination | 0 ~ 50000 lux |
| Light source | Red, Polarized |
| Aiming system | Orange LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 40 mm × 25 mm |
| Weight | 46 mm × 40 mm × 25 mm (1.8" × 1.6" × 1.0") |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.52 kg |
