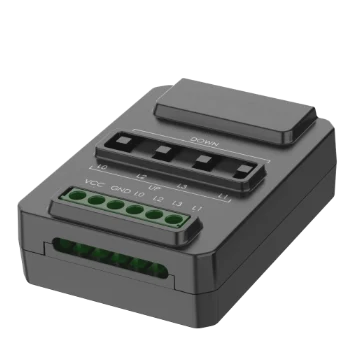

Hikrobot MV-IDA-IO-22 Gen 1 2-in 2-out IO box

Name: Hikrobot MV-IDA-IO-22 Gen 1 2-in 2-out IO box
Brand: Hikrobot
SKU: MV-IDA-IO-22

Model MV-IDA-IO-22

Hikrobot MV-IDA-IO-22 Gen 1 2-in 2-out IO box. I/O box for power and I/O connections to smart code readers or vision sensors; cameras can use its pull-up or pull-down resistors for fast I/O wiring

Datasheet (PDF, Chinese) - MV-IDA-IO-22 CAD: 3D STEP + 2D DXF (ZIP) - MV-IDA-IO-22

Features

I/O box for power and I/O connections to smart code readers or vision sensors; cameras can use its pull-up or pull-down resistors for fast I/O wiring

Specifications

Model	MV-IDA-IO-22
Brand	Hikrobot
Max. output current	Line3:100 mA; Other channels: 24 mA
Pull-up voltage	Equal to VCC
Pull-down voltage	Equal to GND
Power supply	12 ~ 24 VDC
Dimension	49.7 mm × 36.6 mm × 15.8 mm
Weight	Approx. 30 g (0.07 lb.)
Shell material	ABS
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC
Shipping weight (estimated)	0.14 kg
