Home / Code readers & vision sensors / Fixed code readers / ID2000 Series Code Reader Accessories

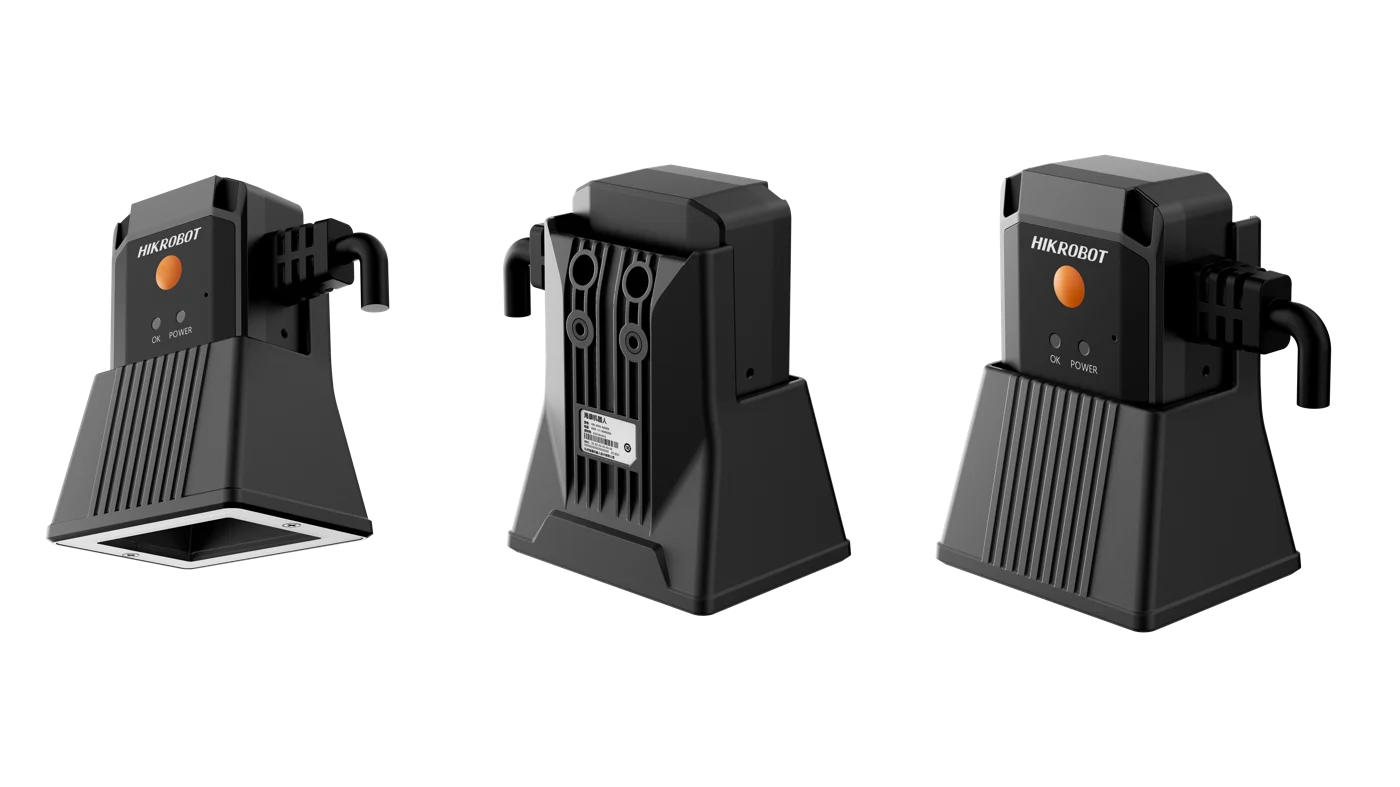

Hikrobot MV-IDA-C-N-43-25-DOME ID2013EM dedicated diffuser cover accessory

Fixed code readers

Hikrobot MV-IDA-C-N-43-25-DOME ID2013EM dedicated diffuser cover accessory

Model MV-IDA-C-N-43-25-DOME

Hikrobot MV-IDA-C-N-43-25-DOME ID2013EM dedicated diffuser cover accessory. This accessory illuminates the barcode evenly from all directions without external power, ideal for efficient reading on highly reflective metal parts.

Price on request
0.52 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF, Chinese) - MV-IDA-C-N-43-25-DOMECAD: 3D STEP + 2D DXF (ZIP) - MV-IDA-C-N-43-25-DOME

Features

  • This accessory illuminates the barcode evenly from all directions without external power, ideal for efficient reading on highly reflective metal parts.

Specifications

ModelMV-IDA-C-N-43-25-DOME
BrandHikrobot
FunctionsDiffuser cover; Recommended working distance: 20 mm ~ 100 mm
MaterialPC
Dimension71.6 mm × 58.8 mm × 47.5 mm
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
Shipping weight (estimated)0.52 kg
