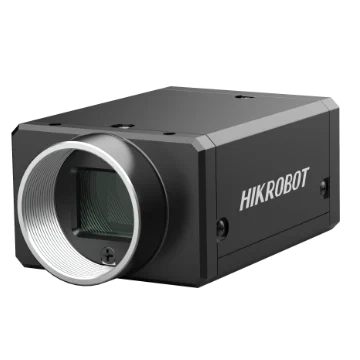

Hikrobot MV-CH160-60GM 16MP Area Scan Camera, GigE
Model MV-CH160-60GM
Hikrobot MV-CH160-60GM 16MP Area Scan Camera, GigE. Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm. Adopts GigE interface and max. transmission distance of 100 meters without relay.
Datasheet (PDF) - MV-CH160-60GMUser manual (PDF) - MV-CH160-60GMCAD: 3D STEP + 2D DXF (ZIP) - MV-CH160-60GM
Features
- Resolution of 4000 × 4000, pixel size of 3.2 µm × 3.2 µm.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Easy and flexible installation, with mounting holes on both its top and bottom panels.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CH160-60GM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | HK |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1.1" |
| Resolution | 4000 × 4000 |
| Max. frame rate | 7.25 fps @ 4000 × 4000 |
| Dynamic range | 65 dB |
| SNR | 38 dB |
| Gain | 6 dB to 14 dB |
| Exposure time | 12 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 26 VDC, supports PoE |
| Power consumption | Typ. 3.72 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
