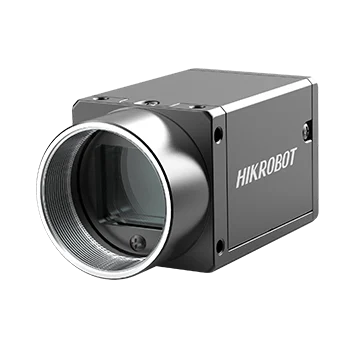

Hikrobot MV-CH120-10GC V5 12MP Area Scan Camera, GigE, IMX304, Color, V5
Model MV-CH120-10GC V5
Hikrobot MV-CH120-10GC V5 12MP Area Scan Camera, GigE, IMX304, Color, V5. Compact design with mounting holes on panels for flexible mounting from 4 sides. Supports auto and manual adjustment of gain, exposure control, and manual adjustment of LUT and Gamma correction.
Features
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Supports auto and manual adjustment of gain, exposure control, and manual adjustment of LUT and Gamma correction.
- Supports LSC, Sequencer, transfer passive mode, etc.
- Color camera supports interpolation, white balance, CCM, Super Palette, and Super Bayer, etc.
- Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.
Specifications
| Model | MV-CH120-10GC V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX304 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3000 |
| Max. frame rate | 9.9 fps @ 4096 × 3000 Bayer RG 8 |
| Dynamic range | 70.4 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, and supports Trigger Width |
| Mono/color | Color |
| Pixel format | Mono 8, ; Bayer RG 8/10/10Packed/12/12Packed, ; YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 2.3 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 98 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
