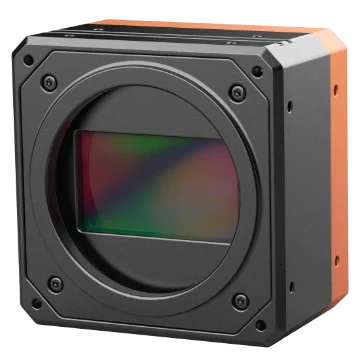

Hikrobot MV-CH1520-90GM-M72-NN 152MP Area Scan Camera, GMAX32152, GigE, Mono, M72-mount, fanless
Model MV-CH1520-90GM-M72-NN
Hikrobot MV-CH1520-90GM-M72-NN 152MP Area Scan Camera, GMAX32152, GigE, Mono, M72-mount, fanless. Resolution of 16320 × 9200, pixel size of 3.2 µm × 3.2 µm. Max. frame rate in non-compressed mode: 0.8 fps, max. frame rate in compressed mode of JPEG format: 5 fps.
Datasheet (PDF) - MV-CH1520-90GM-M72-NNUser manual (PDF) - MV-CH1520-90GM-M72-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH1520-90GM-M72-NN
Features
- Resolution of 16320 × 9200, pixel size of 3.2 µm × 3.2 µm.
- Max. frame rate in non-compressed mode: 0.8 fps, max. frame rate in compressed mode of JPEG format: 5 fps.
- Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image
- Adopts GigE interface and max. transmission distance of 100 meters.
- Compatible with GenlCam Standard.
- Supports LSC to improve image quality.
Specifications
| Model | MV-CH1520-90GM-M72-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel GMAX32152 |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 53.0 mm × 29.4 mm |
| Resolution | 16320 × 9200 |
| Max. frame rate | 0.8 fps @ 16320 × 9200 Mono 8 (non-compressed mode); 5 fps @ 16320 × 9200 Mono 8 (compressed mode in JPEG) |
| Dynamic range | 64.4 dB |
| SNR | 39.1 dB |
| Gain | 1.4x to 5.2x |
| Exposure time | 20 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed; Mono 8 (JPEG) |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9 W @ 24 VDC |
| Lens mount | M72*0.75, flange back length 19.55 mm |
| Dimension (without lens) | 100 mm × 100 mm × 60 mm (3.9" × 3.9" × 2.4") |
| Weight | Approx. 856 g (1.9 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 70 °C (–22 °F to 158 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 (memory more than 8 GB), and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | RoHS |
| Shipping weight (estimated) | 1.30 kg |
