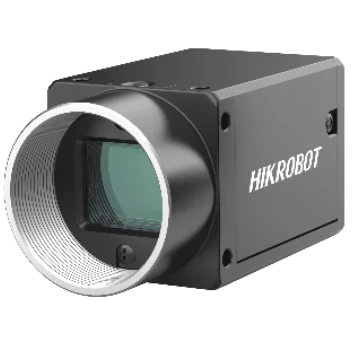

Hikrobot MV-CH120-60NM 12MP Area Scan Camera, 2.5GigE, Mono
Model MV-CH120-60NM
Hikrobot MV-CH120-60NM 12MP Area Scan Camera, 2.5GigE, Mono. Resolution of 4096 × 3072, pixel size of 3.45 µm × 3.45 µm. Supports Binning, reverse image, and ROI settings.
Features
- Resolution of 4096 × 3072, pixel size of 3.45 µm × 3.45 µm.
- Supports Binning, reverse image, and ROI settings.
- Adopt 2.5 GigE interface, and max. transmission distance of 100 meters.
- Compatible with C-mount lenses to reduce costs.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CH120-60NM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1.1" |
| Resolution | 4096 × 3072 |
| Max. frame rate | 24 fps @ 4096 × 3072 Mono 8 |
| Dynamic range | 61.2 dB |
| SNR | 42.8 dB |
| Gain | 0 dB to 23.8 dB |
| Exposure time | 26 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports PoE |
| Power consumption | Typ. 4 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 45 °C (–14 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
