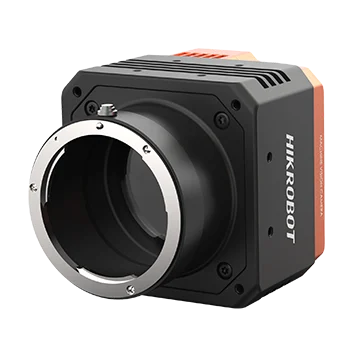

Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan
Model MV-CH310-10GM-F-NF
Hikrobot MV-CH310-10GM-F-NF 31MP Area Scan Camera, GigE, IMX342, Mono, F-mount, with fan. Resolution of 6464 × 4852, pixel size of 3.45 μm × 3.45 μm. Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CH310-10GM-F-NFUser manual (PDF) - MV-CH310-10GM-F-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH310-10GM-F-NF
Features
- Resolution of 6464 × 4852, pixel size of 3.45 μm × 3.45 μm.
- Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Adopts GigE interface providing max. transmission distance of 100 meters without relay.
- Compact design with mounting holes on panels for flexible mounting.
Specifications
| Model | MV-CH310-10GM-F-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX342 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 22.3 mm × 16.7 mm |
| Resolution | 6464 × 4852 |
| Max. frame rate | 3.9 fps @ 6464 × 4852 Mono 8 |
| Dynamic range | 73 dB |
| SNR | 40 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 3 μs to 33 μs; Standard exposure mode: 36 μs to 2 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 9 VDC to 24 VDC |
| Power consumption | Typ. 9 W @ 12 VDC |
| Lens mount | F-mount, flange back length 46.5 mm |
| Dimension | 74 mm × 74 mm × 80.1 mm (2.9" × 2.9" × 3.2") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.94 kg |
