0.056× telecentric lens, 1/1.2", C-mount (LS-TCL-0233)

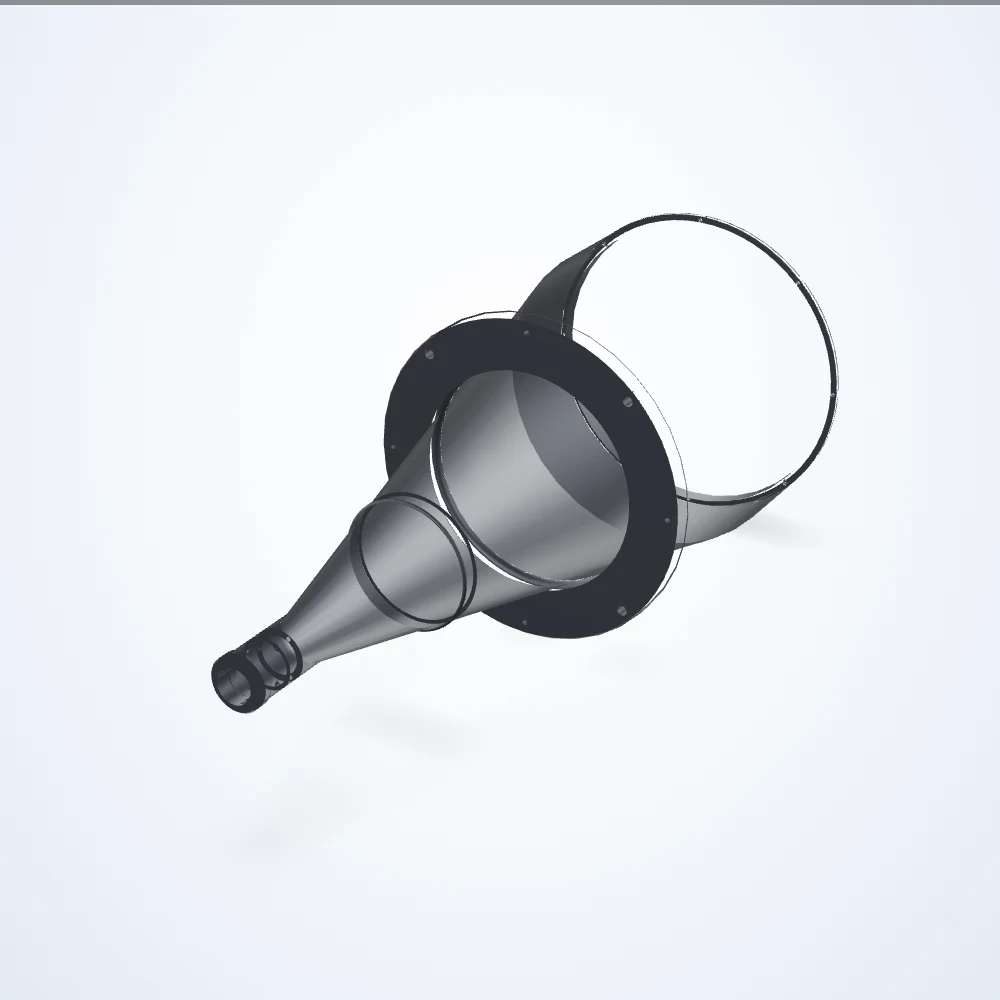

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.056× telecentric lens, 1/1.2", C-mount (LS-TCL-0233)

Model LS-TCL-0233

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 527.6 mm; depth of field 132 mm.

Datasheet (PDF) - LS-TCL-0233 3D model (STEP) - LS-TCL-0233

Specifications

Model	LS-TCL-0233
Magnification	0.056×
Working distance	527.6 mm
Sensor format	1/1.2"
Mount	C-mount
Depth of field	132 mm
Dimensions approximate	628.2 x 260 x 260 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.08
Filter thread	No Filter Threads
Fov @ 1.2″	202.68 x 127.32 mm
FOV @ 1/1.8″	127.32 x 95.18 mm
FOV @ 2/3″	151.79 x 126.61 mm
Front diameter	260 mm
Image circle	13.3 mm
Lens type	Telecentric
Operating temperature range	0 to 40°C
Resolution (pixel size)	91 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°
Working ƒ/n	f/8
Weight	9899 Grams
